Product Details:

Place of Origin: CHINA
Brand Name: Littelfuse
Certification: UL;IEC;CSA;CCC;ROHS
Model Number: 216.200MXEP / 0216.200MXEP Littelfuse fast melting ceramic tube fuse

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 100
Delivery Time: 2-6 weeks
Payment Terms: T/T
Supply Ability: 1,000,000 PCS
Get Best Price Contact Now

Detail Information

Rated Voltage: 250V Rated Current: 200mA
Use Category: PCB Safety Certification: UL VDE CCC KEC PSE CE IEC 60127-2
Metarial: Ceramic Size: 5*20mm
Fusing Characteristics: Fast Model: 216.200MXEP
High Light:

200Ma 250V Ceramic Fuse

,

PCB 200Ma 250V Ceramic Fuse

,

200Ma 250V Fuse

Product Description

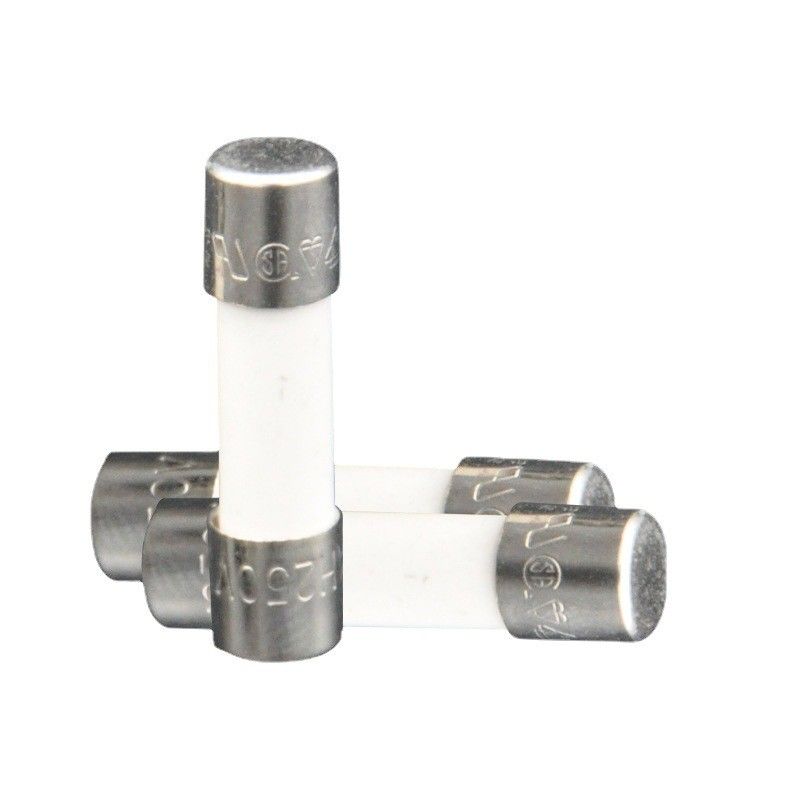

200mA 250V 216.200MXEP / 216.200MXEP Littelfuse Fast Melting Ceramic Tube Fuse

1.  Fast Melting Ceramic Tube Fuse Specification



Electrical Characteristic Specifications by Item
        Nominal Resistance Cold Ohms (Ohms)   Maximum Voltage Drop at Rated Current (mV)

Maximum Power Dissapation at 1.5ln

(W)

    Agency Approvals
Amp Code Amp Rating Voltage Rating Interrupting Rating+ Nominal Melting I2t (A2 sec)*





PS E





PCB 200ma 250v Ceramic Fuse 0216.200mxep 216.200mxep Littelfuse 0

001. 1 250









1500 A @

250 VAC

0.2370 0.18000 1000 2.5 x x x x x x - x
01.6 1.6 250 0.1112 1.00500 600 4 x x x x x x - x
002. 2 250 0.0764 1.87000 500 4 x x x x x x - x
02.5 2.5 250 0.0584 3.67200 400 4 x x x x x x - x
3.15 3.15 250 0.0368 6.70000 350 4 x x x x x x - x
004. 4 250 0.0247 14.99500 300 4 x x x x x x - x
005. 5 250 0.0183 27.46000 250 4 x x x x x x - x
06.3 6.3 250 0.0137 56.43000 200 4 x x x x x x - x
008. 8 250 0.0123 64.31500 200 4 x x - x x - x x
010. 10 250 0.0079 154.34000 200 4 x x - x x - x x








2.PCB 200ma 250v Ceramic Fuse 0216.200mxep 216.200mxep Littelfuse 1



.PCB 200ma 250v Ceramic Fuse 0216.200mxep 216.200mxep Littelfuse 2
