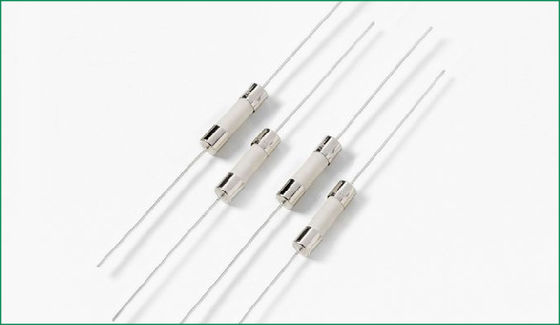

• KEC Certification 5X20 Ceramic Fuse  10A 250V  0216.010MXEP Fast Melting
KEC Certification 5X20 Ceramic Fuse  10A 250V  0216.010MXEP Fast Melting

KEC Certification 5X20 Ceramic Fuse 10A 250V 0216.010MXEP Fast Melting

Product Details:

Place of Origin: CHINA
Brand Name: Littelfuse
Certification: UL;IEC;CSA;CCC;ROHS
Model Number: 0216.010MXEP Littelfuse fast melting ceramic tube fuse

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 100
Delivery Time: 2-6 weeks
Payment Terms: T/T
Supply Ability: 1,000,000 PCS
Get Best Price Contact Now

Detail Information

Rated Voltage: 250V Rated Current: 10A
Use Category: PCB Safety Certification: UL VDE CCC KEC PSE CE IEC 60127-2
Metarial: Ceramic Size: 5*20mm
Fusing Characteristics: Fast
High Light:

KEC 5X20 Ceramic Fuse

,

ast Melting 5X20 Ceramic Fuse

,

Fast Melting 5X20 10A Fuse

Product Description





1.Littelfuse 5*20mm 10A 250V 0216.010MXEP Fast Melting Ceramic Tube Fuse



Electrical Characteristic Specifications by Item
        Nominal Resistance Cold Ohms (Ohms)   Maximum Voltage Drop at Rated Current (mV)

Maximum Power Dissapation at 1.5ln

(W)

    Agency Approvals
Amp Code Amp Rating Voltage Rating Interrupting Rating+ Nominal Melting I2t (A2 sec)*





PS E





KEC Certification 5X20 Ceramic Fuse  10A 250V  0216.010MXEP Fast Melting 0

001. 1 250









1500 A @

250 VAC

0.2370 0.18000 1000 2.5 x x x x x x - x
01.6 1.6 250 0.1112 1.00500 600 4 x x x x x x - x
002. 2 250 0.0764 1.87000 500 4 x x x x x x - x
02.5 2.5 250 0.0584 3.67200 400 4 x x x x x x - x
3.15 3.15 250 0.0368 6.70000 350 4 x x x x x x - x
004. 4 250 0.0247 14.99500 300 4 x x x x x x - x
005. 5 250 0.0183 27.46000 250 4 x x x x x x - x
06.3 6.3 250 0.0137 56.43000 200 4 x x x x x x - x
008. 8 250 0.0123 64.31500 200 4 x x - x x - x x
010. 10 250 0.0079 154.34000 200 4 x x - x x - x x



2.KEC Certification 5X20 Ceramic Fuse  10A 250V  0216.010MXEP Fast Melting 1



3.KEC Certification 5X20 Ceramic Fuse  10A 250V  0216.010MXEP Fast Melting 2
