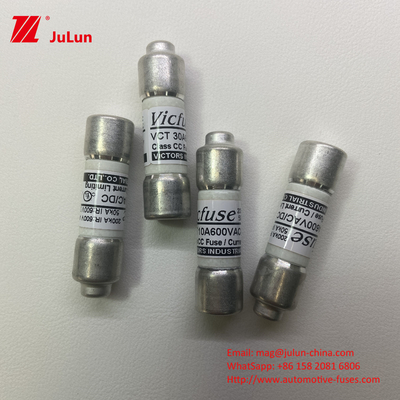

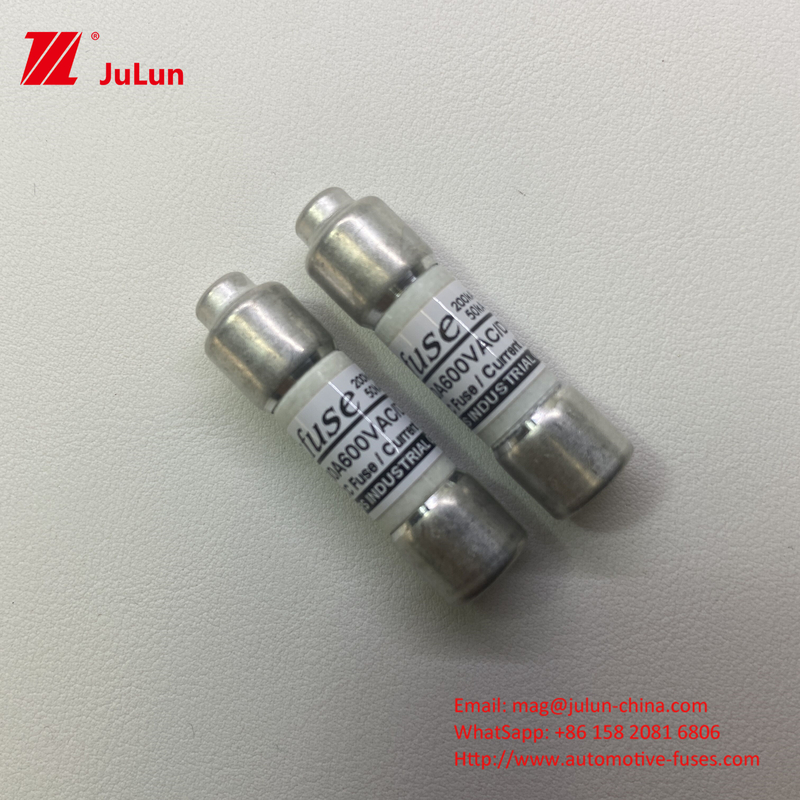

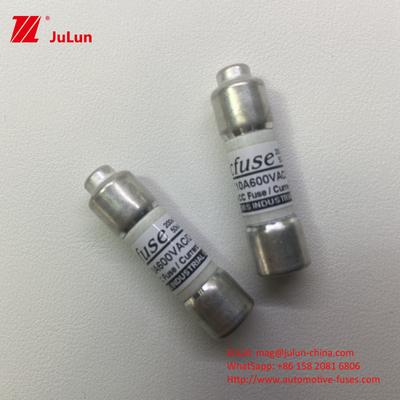

PV Ceramic Fuses: 0.1~30A 20A 25A Fuses with FUSE Holder 50KA DC
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | UL |
| Model Number: | VCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 2~5USD |
| Packaging Details: | carton |
| Delivery Time: | 3~4weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Size: | 10*38mm | Color: | White |
|---|---|---|---|
| Current Rating: | 0.1A-30A | Application: | Automotive,PV AC / DC Fuses Are Used For Solar Bus-boxes And DC Fault Currents |
| Mounting Type: | With Fose Holder | ||
Product Description
Product Description:
Ceramic Automotive Fuses are designed to protect vehicle electronics and wiring from overloads and short circuits. These fuses are made of high-quality ceramic material that is able to withstand high temperatures and pressures. These fuses have a rated voltage of 600VAC/600VDC and a DC fault current of 50KA, and are ideal for use in Solar Junction Box and DC Fault Current50KA applications. They are designed to be mounted using a fuse holder and have a lead time of 10*38mm. Ceramic Automotive Fuses are an essential component for any automotive application, offering superior protection and reliability.
Features:
- Product Name: Ceramic Automotive Fuses
- Mounting method: Fuse Holder
- Rated voltage: 600VAC /600VDC
- Application scenario: Solar Energy Junction Box
- Lead Time: 10*38mm
- Feature: Small Volume, High Interrupt Current Limiting Function
Technical Parameters:
| Property | Value |
|---|---|
| Rated voltage | 600VAC /600VDC |
| Mounting method | Fuse Holder |
| Current Rating | 0.1A-30A |
| Application scenario | Solar Energy Junction Box |
| Lead Time | 10*38mm |
| Color | White |
| Dc fault current | 50KA |
| Certification | UL248-4 |
| Feature | Small Volume, High Interrupt Current Limiting Function |
| Application | Solar Junction Box And DC Fault Current50KA |
Applications:
JULUN Ceramic Automotive Fuses, also known as Ceramic Vehicle Fuses and Ceramic Automobile Fuses, are designed to protect circuits from overcurrents and short circuits. These fuses are UL248-4 certified and have a model number of VCT. This Ceramic Automotive Fuse has a current rating of 0.1A-30A and a DC fault current of 50KA for protection of Solar Junction Box. The fuse is available in white color, aiming to meet the requirements of customers in different conditions.
Customization:
Ceramic Automotive Fuses
Brand Name: JULUN
Model Number: VCT
Place of Origin: China
Rated voltage: 600VAC /600VDC
Application: Solar Junction Box And DC Fault Current50KA
Interrupt rating: AC200kA.DC50KA
Dc fault current: 50KA
Current Rating: 0.1A-30A
Ceramic Car Fuses, Ceramic Vehicle Fuses, Ceramic Automobile Fuses, JULUN, VCT
