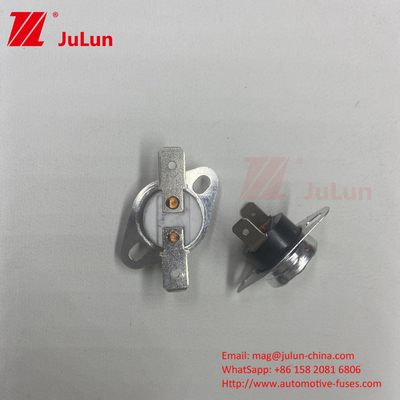

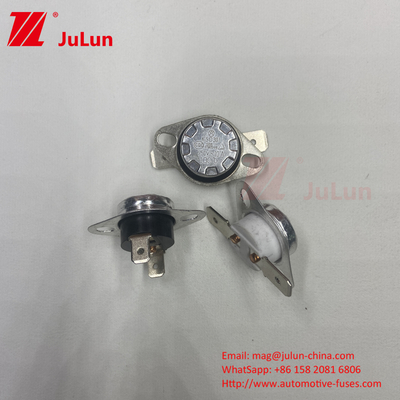

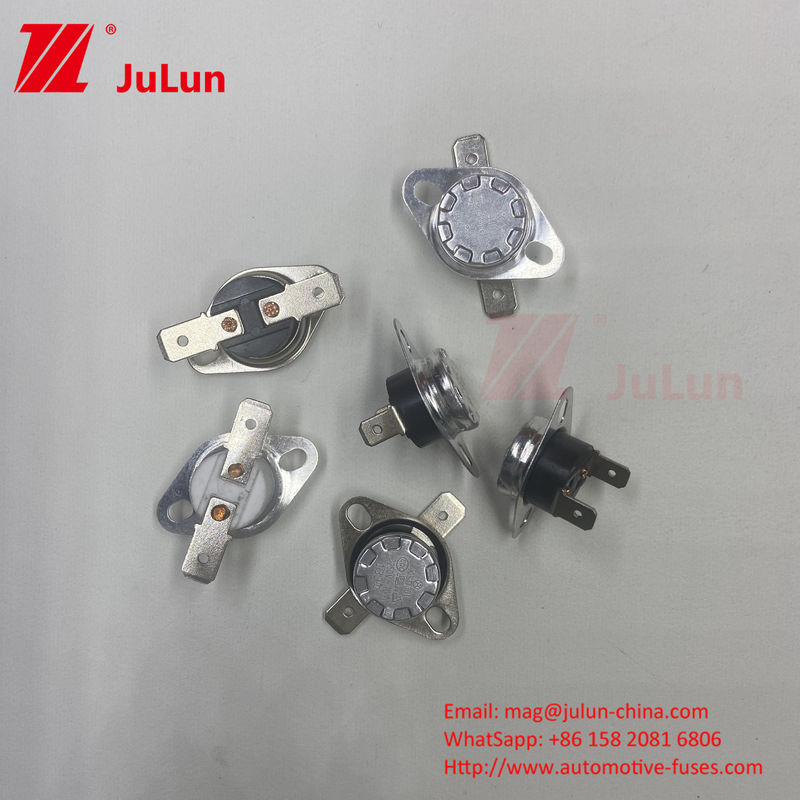

Laminators Bimetal Snap Disc Thermostat , Auto Reset KSD301 Thermal Protector

Product Description:

The temperature sensor face is made of either an aluminum cap or copper head, which ensures accurate temperature sensing and measurement. The device has a life cycle of ≥100000 times, making it extremely durable and long-lasting.
The Thermistor Temperature Sensor comes with two types of mounting brackets: movable or immovable, which makes it suitable for use in various applications. The device is ideal for use in hot water kettles, where precise temperature control is necessary to ensure the perfect brew.
The device features a hexagonal shape, which makes it easy to handle and install. It is designed with a jump switch that allows for easy integration with other systems and devices, making it an ideal choice for use in complex industrial applications.
In summary, the Thermistor Temperature Sensor is a highly reliable device that offers accurate temperature sensing and measurement. Its durable construction, along with the two types of mounting brackets, makes it suitable for use in various applications. Whether you are using it in a hot water kettle or complex industrial applications, the Thermistor Temperature Sensor is an ideal choice for precise temperature control.

Features:

• Product Name: Thermistor Temperature Sensor
• Two kinds of mounting bracket: Movable Or Immovable
• Life cycle: ≥100000 Times
• Temperature deviation: ±3 / ±5 / ±10 Degree Or According To Client's Request
• Action Temperature: 0~250℃
• Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
• Pin type: KSD301
• Temperature control switch

Technical Parameters:

Applications:

The JULUN Thermistor Temperature Sensor is suitable for use in household appliances, such as water heaters, electric ovens, and electric fryers, to control temperature. It is also used in industrial equipment, such as electric furnaces, metallurgical machinery, and petrochemical equipment, to monitor temperature and prevent damage.
The Thermistor Temperature Sensor is available in two mounting brackets - movable or immovable. The hexagonal mounting bracket makes it easy to install in different equipment. The circuit resistance of the Thermistor Temperature Sensor is ≤50mΩ (Initial Value), which ensures a stable and accurate temperature control.
The JULUN Thermistor Temperature Sensor has a wide temperature range of 0~250℃, making it suitable for use in different temperature environments. The life cycle of the Thermistor Temperature Sensor is ≥100000 times, ensuring a long service life. The contact type of the Thermistor Temperature Sensor is normally closed or normally open, which provides flexibility in its application.
The JULUN Thermistor Temperature Sensor has a maximum current rating of 10A 250V, making it suitable for use in high-power equipment. The Thermistor Temperature Sensor can be used to provide accurate temperature control and prevent overheating in equipment, ensuring safety and reliability.
The minimum order quantity for the JULUN Thermistor Temperature Sensor is 100. The price range is between 0.7~1.5 and the packaging details are carton. The delivery time is 1~2 weeks, and the payment terms are T-T. The supply ability is 1000K/times.

Customization:

• Brand Name: JULUN
• Model Number: KSD301 KSD302 Bimetal Thermostat
• Place of Origin: China
• Certification: CE UL CCC
• Minimum Order Quantity: 100
• Price: 0.7~1.5
• Packaging Details: Carton
• Delivery Time: 1~2weeks
• Payment Terms: T-T
• Supply Ability: 1000K/times
• Model Name: KSD301 KSD302 KSD 130°C 92°C 55°C
• Circuit resistance: ≤50mΩ (Initial Value)
• Insulation resistance: AC50Hz 1500V / Min, No Breakdown Blinding (Normal State)
• Temperature deviation: ±3 / ±5 / ±10 Degree Or According To Client's Request
• Terminal type: A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional

Additional keywords: Temperature control switch, M6, hexagonal

Support and Services:

The Thermistor Temperature Sensor product offers the following technical support and services:

• Technical documentation and datasheets
• Application notes and design guides
• Software and firmware updates
• Online forums and communities for peer-to-peer support
• Expert technical support through phone or email
• Repair and calibration services
• Custom design and manufacturing services

Packing and Shipping:

The Thermistor Temperature Sensor is carefully packaged to ensure safe and damage-free delivery. It is packed in a sturdy cardboard box with foam inserts to protect the product from any impact during transit. The product is also wrapped securely to prevent any scratches or damage to its surface.
Shipping:
We offer standard shipping for the Thermistor Temperature Sensor. The product is shipped within 2-3 business days after the order is placed. Delivery times vary depending on the destination, but usually take between 5-7 business days. We provide a tracking number so that you can monitor the status of your shipment.

FAQ:

Q1. What is the brand name of the Thermistor Temperature Sensor?
A1. The brand name of the Thermistor Temperature Sensor is JULUN.
Q2. What is the model number of the Thermistor Temperature Sensor?
A2. The model number of the Thermistor Temperature Sensor is KSD301 KSD302 Bimetal Thermostat.
Q3. Where is the Thermistor Temperature Sensor made?
A3. The Thermistor Temperature Sensor is made in China.
Q4. Does the Thermistor Temperature Sensor have any certifications?
A4. Yes, the Thermistor Temperature Sensor is CE, UL, and CCC certified.
Q5. What is the minimum order quantity for the Thermistor Temperature Sensor?
A5. The minimum order quantity for the Thermistor Temperature Sensor is 100.
Q6. What is the price range of the Thermistor Temperature Sensor?
A6. The price range of the Thermistor Temperature Sensor is between 0.7~1.5.
Q7. What are the packaging details for the Thermistor Temperature Sensor?
A7. The packaging details for the Thermistor Temperature Sensor are cartons.
Q8. What is the delivery time for the Thermistor Temperature Sensor?
A8. The delivery time for the Thermistor Temperature Sensor is 1~2 weeks.
Q9. What are the payment terms for the Thermistor Temperature Sensor?
A9. The payment terms for the Thermistor Temperature Sensor are T-T.
Q10. What is the supply ability of the Thermistor Temperature Sensor?
A10. The supply ability of the Thermistor Temperature Sensor is 1000K/times.
