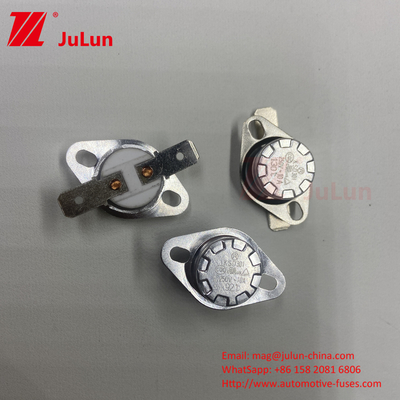

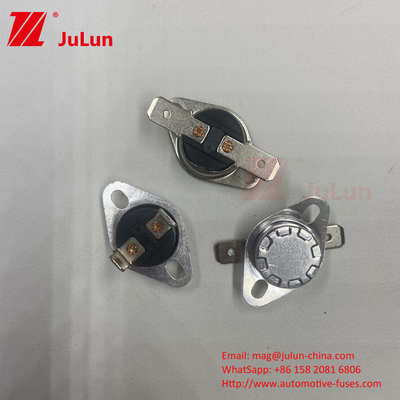

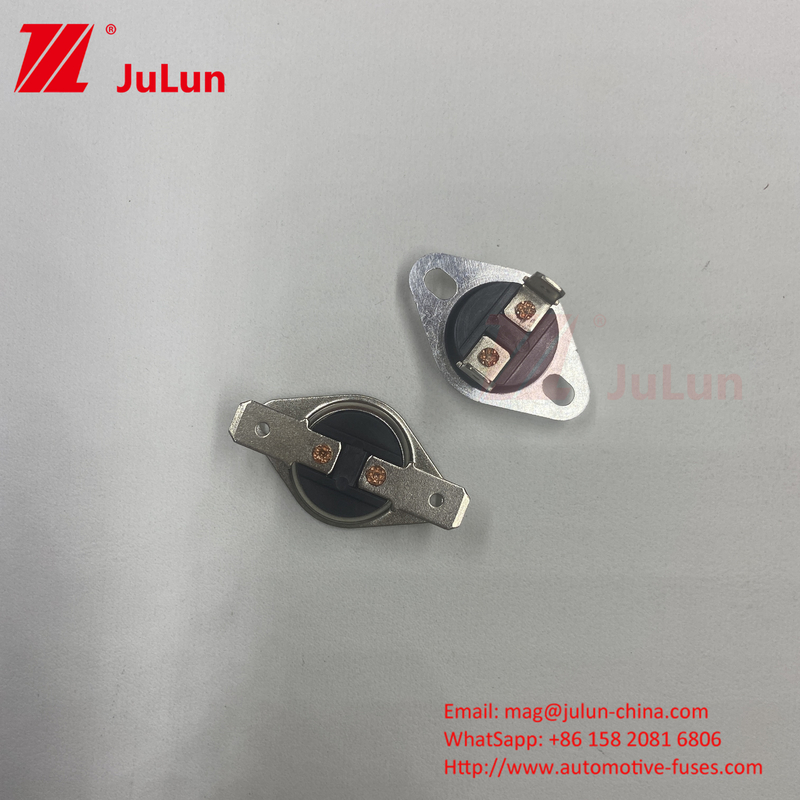

KSD301 Temperature Activated On Off Switch Manual Reset Type RoHS Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. | Circuit Resistance: | ≤50mΩ (Initial Value) |
|---|---|---|---|
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | Two Kinds Of Mounting Bracket: | Movable Or Immovable |
| Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional | ActionTemperature: | 0~250℃ |
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | Temperature Deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Highlight: | KSD301 Temperature Activated On Off Switch,Manual Temperature Activated On Off Switch,RoHS Temperature Activated On Off Switch |
||
Product Description
Product Description:
The voltage and current ratings of this sensor are impressive, with AC 125V Max 15A and AC250V 5A 10A 15A Max 16A. This means that it can handle high voltages and currents with ease, making it suitable for use in a wide range of devices and systems.
The Thermistor Temperature Sensor comes with two types of terminals - 187 series of 4.8*0.5mm and 4.8*0.8mm, and 250 series of 6.3*0.8mm. Additionally, the terminal angle can be customized to bending angle: 0~90°C, providing a wide range of options for installation and usage. The contact type of this sensor can be either normally closed or normally open, which is useful for different types of applications.
Overall, the Thermistor Temperature Sensor is a reliable and high-performance device that is suitable for use in various applications such as incubators, hot water kettles, and temperature control switches. With its impressive voltage and current ratings, sensitive circuit resistance, and flexible mounting options, this sensor is an excellent choice for anyone looking for a high-quality temperature sensor.
Features:
- Product Name: Thermistor Temperature Sensor
- Model name: KSD301 KSD302 KSD 130°C 92°C 55°C
- Two kinds of mounting bracket: Movable Or Immovable
- Contact type: Normally Closed Or Normally Open
- Temperature deviation: ±3 / ±5 / ±10 Degree Or According To Client's Request
- Terminal type:
- A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
- B. Terminal Angle: Bending Angle: 0~90°C Optional
- 10A 250V
- Hexagonal
- Temperature controller
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Contact type | Normally Closed Or Normally Open |
| Mounting bracket | Two kinds: Movable Or Immovable |
| Insulation resistance | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Terminal type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Recovery and action temperature difference | 0 To 25 Degrees, Or According To Client's Request |
| Temperature sensor face | Aluminum Cap Or Copper Head |
| Life cycle | ≥100000 Times |
| Circuit resistance | ≤50mΩ (Initial Value) |
| House | Plastic Or Ceramic |
Applications:
Our JULUN Thermistor Temperature Sensor comes in a plastic or ceramic housing, and has two options for the terminal type. The first one is the 187series of 4.8*0.5mm and 4.8*0.8mm, while the second one is the 250 series of 6.3*0.8mm. For the terminal angle, clients have the option of choosing a bending angle of 0~90°C. With a life cycle of ≥100000 times, our JULUN Thermistor Temperature Sensor is durable and long-lasting.
The JULUN Thermistor Temperature Sensor has an action temperature range of 0~250℃, with a temperature deviation of ±3 / ±5 / ±10 degree or according to the client's request. This product is perfect for various applications, such as in household appliances like ovens, refrigerators, air conditioners, and water heaters. It is also applicable in the industrial sector, particularly in temperature-controlled systems used in factories, warehouses, and other industrial environments.
Our JULUN Thermistor Temperature Sensor is equipped with a threaded brass, making it easy to install and secure. With the KSD301 model specifically, it is commonly used in electric water heaters and other temperature-controlled equipment.
Customization:
Looking for product customization services for your Thermistor Temperature Sensor? Look no further than JULUN! Our KSD301 KSD302 Bimetal Thermostat model is made in China and comes with CE UL CCC certification.
The minimum order quantity is 100 units, and the price ranges from 0.7 to 1.5. The product is packaged in cartons and can be delivered within 1-2 weeks. We accept T-T payment and have a supply ability of 1000K/times.
The housing of our KSD301 KSD302 KSD 130°C 92°C 55°C model is made of plastic or ceramic, and has a life cycle of ≥100000 times. The temperature sensor face can be made of aluminum cap or copper head, and the terminal type is available in two options:
A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
B. Terminal Angle: Bending Angle: 0~90°C Optional
Our product is perfect for Hot Water Kettles and other temperature control switch applications. Don't hesitate to contact us for more information about our hexagonal temperature sensor!
Support and Services:
Our Thermistor Temperature Sensor product comes with comprehensive technical support and services to ensure that you can fully utilize its features. Our team of experienced professionals is available to answer any questions you may have about the product, as well as provide troubleshooting assistance. We also offer product training, installation support, and maintenance services to ensure that your product continues to perform at its best. Additionally, we provide product documentation, including manuals and datasheets, to help you understand and use the product effectively. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
This Thermistor Temperature Sensor comes packaged in a sturdy, compact box, ensuring that it arrives to you in perfect condition. The box includes:
- Thermistor Temperature Sensor
- User Manual
- Warranty Card
Shipping:
We offer free shipping for this product within the United States. Once your order is placed, it will be processed and shipped within 24-48 hours. You will receive a tracking number via email once your order has shipped.
FAQ:
Q: What is the brand name of the Thermistor Temperature Sensor?
A: The brand name of the Thermistor Temperature Sensor is JULUN.
Q: What is the model number of the Thermistor Temperature Sensor?
A: The model number of the Thermistor Temperature Sensor is KSD301 KSD302 Bimetal Thermostat.
Q: Where is the Thermistor Temperature Sensor made?
A: The Thermistor Temperature Sensor is made in China.
Q: What certifications does the Thermistor Temperature Sensor have?
A: The Thermistor Temperature Sensor is certified with CE, UL, and CCC.
Q: What is the minimum order quantity for the Thermistor Temperature Sensor and what is the price range?
A: The minimum order quantity for the Thermistor Temperature Sensor is 100 and the price range is between 0.7 to 1.5 USD.
Q: What are the packaging details, delivery time, payment terms, and supply ability of the Thermistor Temperature Sensor?
A: The packaging details for the Thermistor Temperature Sensor is in a carton. The delivery time is 1 to 2 weeks. The payment terms are T-T. The supply ability is 1000K/times.
