Automobile Energy Storage A202001 150A 150VDC Power Conversion Application Ceramic Automotive Fuses Rated at 150VDC 16-20KA 400A 500A
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE |
| Certification: | UL |
| Model Number: | A202001 100A 150A 200A 250A 300A 350A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 4.8USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~4weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Installation Mode: | Recommended Tight Torque: 11-13N·m For M8 | SIZE: | 20*55mm |
|---|---|---|---|
| Hole Distance: | 39mm | Mounting Method: | SCREW BOLT |
| Electric Current: | 100A 150A 200A 250A 300A 350A 400A 500A | Voltage: | 150VDC |
| Application Product: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. | Electrical Characteristics: | 1.0In >4 Hours 3.0In 10s Max. |
Product Description
Product Description:

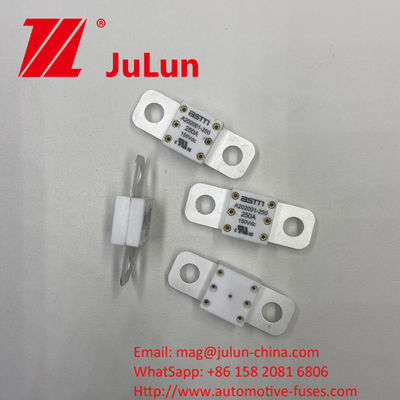

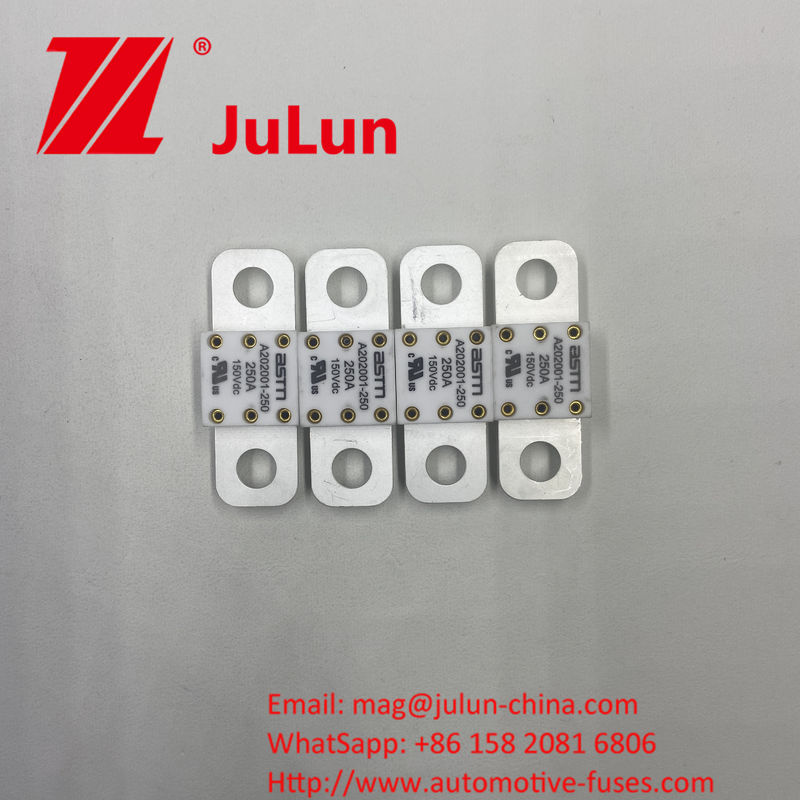

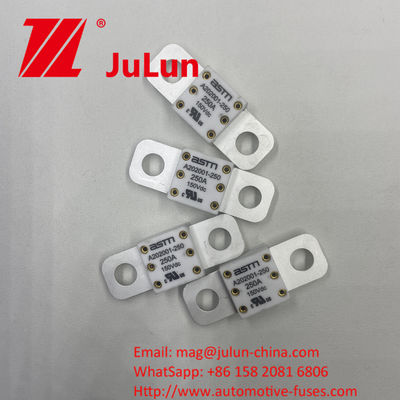

These Ceramic Car Fuses are manufactured using high-quality ceramic material that provides excellent thermal stability and mechanical strength. They are rated for a voltage of 150VDC, making them suitable for use in a wide range of automotive applications.
One of the key features of these Ceramic Vehicle Fuses is their small size, which allows them to be used in tight spaces without taking up too much room. Despite their small size, they have a high current rating, which makes them ideal for short circuit protection.
Another important attribute of these Ceramic Automotive Fuses is their high breaking capacity. They can withstand up to 20KA (100-350A) and 16-20KA for 400A and 500A, respectively. This makes them capable of handling high levels of current without breaking down or causing damage to the electrical system.
The mounting method for these Ceramic Car Fuses is via SCREW BOLT, which provides a secure and stable connection to the electrical system. This ensures that the fuses remain in place, even in rough driving conditions or when subjected to vibrations and shocks.
When it comes to electrical characteristics, these Ceramic Automotive Fuses have a 1.0In >4 Hours and 3.0In 10s Max. This means that they can handle a current of 1.0 times their rated current for more than four hours without breaking down, and up to 3.0 times their rated current for a maximum of 10 seconds.
Overall, these Ceramic Automotive Fuses are an essential component of any automotive electrical system. With their high breaking capacity, small size, and reliable mounting method, they provide excellent short circuit protection for a wide range of applications.
Features:
- Product Name: Ceramic Automotive Fuses
- Material: Ceramic, Copper, Silver, Quartz Sand, Gold
- Feature: Small Size With High Current Rating For Short Circuit Protection
- Hole Distance: 39mm
- Size: 20*55mm
- Installation Mode: Recommended Tight Torque: 11-13N·m For M8
Technical Parameters:
| Attribute | Value |
|---|---|
| Application product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Mounting method | SCREW BOLT |
| SIZE | 20*55mm |
| Hole distance | 39mm |
| Electric current | 100A, 150A, 200A, 250A, 300A, 350A, 400A, 500A |
| Electrical Characteristics | 1.0In >4 Hours, 3.0In 10s Max. |
| Breaking capacity | 20KA(100~350A), 16~20KA (400A, 500A) |
| Rated voltage | 150VDC |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Voltage | 150VDC |
Applications:
The Ceramic Automobile Fuses from ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE are designed for a variety of application occasions and scenarios. These fuses are recommended for use in EV Traction Systems, Power Conversion, Energy Storage, Car Chargers, and more. The breaking capacity of these fuses ranges from 20KA for 100-350A fuses to 16-20KA for 400A and 500A fuses.
These fuses are made of high-quality materials such as ceramic, copper, silver, quartz sand, and gold. The installation mode for these fuses is recommended to be tight torque of 11-13N·m for M8. The hole distance for these fuses is 39mm.
The minimum order quantity for these Ceramic Vehicle Fuses is 100 pieces, and the price ranges from 1.5 to 2 USD per piece. These fuses are packaged in cartons and have a delivery time of 2-4 weeks. The payment terms for these fuses are T-T, and the supply ability is 1000K/PCS.
Customization:
Customize your Ceramic Vehicle Fuses to fit your specific needs with our product customization services. Our ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE is available in model number A202001 with options for amperage ranging from 100A to 350A. These fuses are made in China and are UL certified, ensuring their quality and reliability. The minimum order quantity is 100 units at a price of 1.5~2USD per unit. The fuses are packaged in cartons and have a delivery time of 2~4 weeks. Payment terms are T-T and we have a supply ability of 1000K/PCS.
The Ceramic Automobile Fuses are mounted using a SCREW BOLT method and have a voltage rating of 150VDC. The hole distance for installation is 39mm and the recommended tight torque for M8 installation is 11-13N·m. The size of the fuses is 20*55mm, making them suitable for a range of automotive applications.
Support and Services:
Our Ceramic Automotive Fuses are designed to meet the high demands of the automotive industry. We offer a range of amperages and voltages to fit your specific needs. Our fuses are made with high-quality materials ensuring reliability and durability. If you have any technical questions or need assistance with installation, our knowledgeable support team is available to help. We also offer repair and replacement services for any defective fuses.
