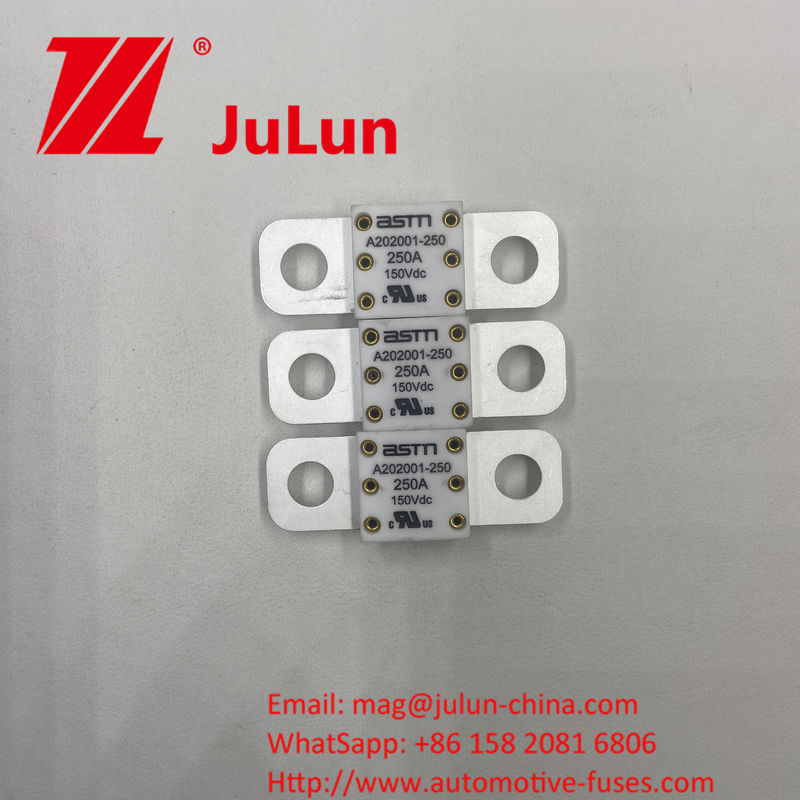

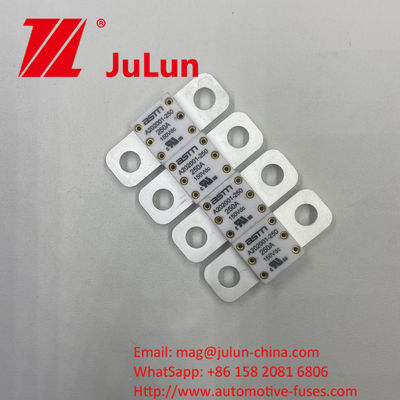

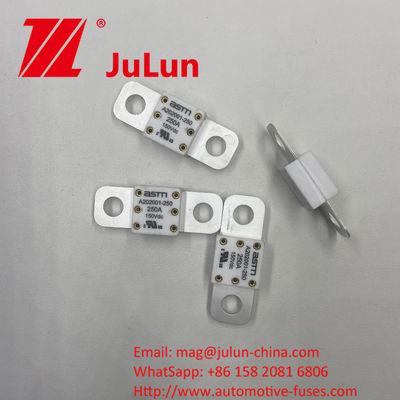

ASTM Ceramic Automotive Fuses for EV Traction System Recommended A202001 500A 125VDC
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE |
| Certification: | UL |
| Model Number: | A202001 100A 150A 200A 250A 300A 350A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 5.5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~4weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Material: | Ceramic Copper Silver Quartz Sand Gold | Mounting Method: | SCREW BOLT |
|---|---|---|---|
| Rated Voltage: | 150VDC | Electrical Characteristics: | 1.0In >4 Hours 3.0In 10s Max. |
| Hole Distance: | 39mm | Application Product: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Electric Current: | 100A 150A 200A 250A 300A 350A 400A 500A | SIZE: | 20*55mm |
Product Description
Product Description:
Our Ceramic Automotive Fuses are made from a durable ceramic material that is highly resistant to heat and wear, ensuring long-lasting performance. The fuses are also made with copper, silver, quartz sand, and gold, providing exceptional conductivity and minimizing the risk of electrical arcing.
We offer a wide range of electric currents for our Ceramic Automotive Fuses, including 100A, 150A, 200A, 250A, 300A, 350A, 400A, and 500A. These fuses are rated for a maximum voltage of 150VDC, providing reliable protection against electrical overload.
Whether you're looking to upgrade your vehicle's electrical system or need to replace a blown fuse, our Ceramic Automotive Fuses are the perfect choice. Order yours today and enjoy the peace of mind that comes with reliable protection against electrical overload.
Features:
- Product Name: Ceramic Automotive Fuses
- Hole distance: 39mm
- Application product: EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc.
- Electrical Characteristics: 1.0In >4 Hours 3.0In 10s Max.
- Breaking capacity: 20KA(100~350A) 16~20KA 400A 500A
- Installation mode: Recommended Tight Torque: 11-13N·m For M8
Keywords: Ceramic Vehicle Fuses, Ceramic Automobile Fuses, Ceramic Vehicle Fuses
Technical Parameters:
| Product Name | Ceramic Automotive Fuses |
| Breaking Capacity | 20KA(100~350A) 16~20KA 400A 500A |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Rated Voltage | 150VDC |
| Application Product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Hole Distance | 39mm |
| Electric Current | 100A 150A 200A 250A 300A 350A 400A 500A |
| Size | 20*55mm |
| Electrical Characteristics | 1.0In >4 Hours 3.0In 10s Max. |
| Material | Ceramic Copper Silver Quartz Sand Gold |
| Installation Mode | Recommended Tight Torque: 11-13N·m For M8 |
Applications:
Our ceramic automotive fuses are designed for a variety of applications, including EV traction systems, power conversion, energy storage, car chargers, and more. With a hole distance of 39mm and a breaking capacity of 20KA for amperages between 100A and 350A, and 16-20KA for 400A and 500A, our fuses can handle high electrical loads with ease.
Our fuses have a supply ability of 1000K/PCS with a minimum order quantity of 100, and a price range of 1.5-2USD per unit. Our packaging details come in a carton and have a delivery time of 2-4 weeks. Payment terms are T-T.
We take pride in our electrical characteristics, which include 1.0In >4 Hours and 3.0In 10s Max, offering reliable and safe performance for your automotive needs. Our fuses are designed with a screw bolt mounting method for easy installation and replacement.
Choose ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE for your ceramic vehicle fuse needs. Our ceramic automotive fuses are guaranteed to provide reliable and safe performance for all your automotive needs.
Customization:
Support and Services:
The Ceramic Automotive Fuses product provides reliable protection for your vehicle's electrical systems. Our fuses are designed to withstand high temperatures and provide optimal performance in harsh environments. We offer a range of fuses with various current ratings and sizes to meet your specific needs. Our technical support team is available to assist with any questions or issues you may have with our products. Additionally, we provide services such as custom packaging and labeling to ensure seamless integration into your manufacturing process. Trust our Ceramic Automotive Fuses to keep your vehicle running smoothly.
