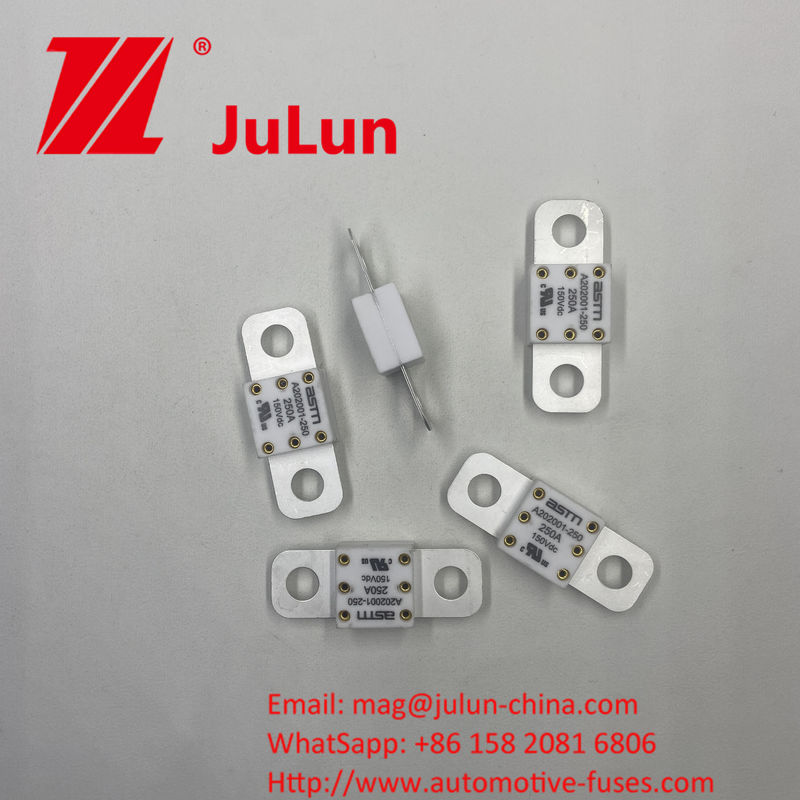

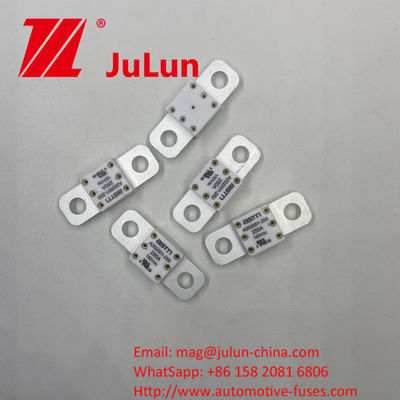

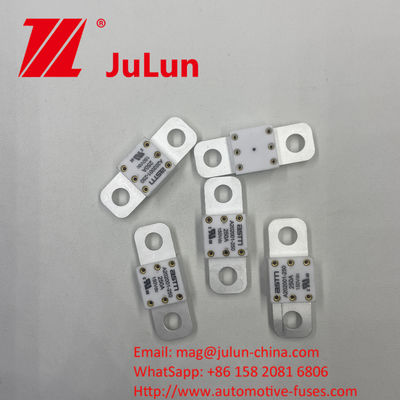

150VDC 350A A202001 ASTM Ceramic Automobile Fuses for Automobile Energy Storage

150VDC 350A A202001 ASTM Ceramic Automobile Fuses for Automobile Energy Storage

Product Details:

Place of Origin: China
Brand Name: ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE
Certification: UL
Model Number: A202001 100A 150A 200A 250A 300A 350A

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: 4.8USD
Packaging Details: Carton
Delivery Time: 2~4weeks
Payment Terms: T-T
Supply Ability: 1000K/PCS
Get Best Price Contact Now

Detail Information

SIZE: 20*55mm Hole Distance: 39mm
Rated Voltage: 150VDC Electrical Characteristics: 1.0In >4 Hours 3.0In 10s Max.
Mounting Method: SCREW BOLT Electric Current: 100A 150A 200A 250A 300A 350A 400A 500A
Installation Mode: Recommended Tight Torque: 11-13N·m For M8

Product Description

Product Description:

150VDC 350A A202001 ASTM Ceramic Automobile Fuses for Automobile Energy Storage 0

The Ceramic Automotive Fuses have a size of 20*55mm, making them easy to install in a variety of vehicles. They are designed to be installed using a recommended tight torque of 11-13N·m for M8 bolts. The mounting method for these fuses is a screw bolt, which ensures a secure and reliable connection.

One of the key features of the Ceramic Automotive Fuses is their high breaking capacity. They can withstand a breaking capacity of 20KA for current ratings between 100A and 350A, and between 16KA and 20KA for current ratings of 400A and 500A, which means they can handle high current surges without failing.

These Ceramic Automotive Fuses are made of high-quality materials, ensuring durability and long-lasting performance. They are designed to be used in a range of automotive applications, including cars, trucks, and other vehicles that require reliable electrical protection.

Overall, the Ceramic Automotive Fuses are an essential component for any vehicle's electrical system. They provide reliable protection against electrical surges and ensure the safe and efficient functioning of your vehicle. So, if you're looking for high-quality Ceramic Vehicle Fuses, look no further than the Ceramic Automotive Fuses.



Features:

  • Product Name: Ceramic Automotive Fuses
  • Rated Voltage: 150VDC
  • Installation Mode: Recommended Tight Torque: 11-13N·m For M8
  • Feature: Small Size With High Current Rating For Short Circuit Protection
  • Voltage: 150VDC
  • SIZE: 20*55mm


Technical Parameters:

Product Name Ceramic Automotive Fuses
Size 20*55mm
Breaking Capacity 20KA(100~350A) 16~20KA 400A 500A
Electric Current 100A 150A 200A 250A 300A 350A 400A 500A
Electrical Characteristics 1.0In >4 Hours 3.0In 10s Max.
Voltage 150VDC
Hole Distance 39mm
Installation Mode Recommended Tight Torque: 11-13N·m For M8
Material Ceramic Copper Silver Quartz Sand Gold
Feature Small Size With High Current Rating For Short Circuit Protection
Application Product EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc.


Applications:

Ceramic Automobile Fuses are a crucial component in modern vehicles designed to protect the electrical system from overload and short circuits. The ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE is a top-quality ceramic fuse that is designed to offer reliable performance and ensure maximum safety.

The A202001 model is available in various amperages, including 100A, 150A, 200A, 250A, 300A, and 350A. The fuses are manufactured in China and are UL certified, meaning they meet the highest safety standards and are suitable for use in a range of automotive applications.

The Ceramic Automobile Fuses are ideal for use in EV traction systems, power conversion, energy storage, car chargers, and other automotive applications. The fuses are made using high-quality materials such as ceramic, copper, silver, quartz sand, and gold. These materials ensure that the fuses are highly durable, long-lasting, and capable of withstanding harsh environments.

When it comes to electrical characteristics, the Ceramic Automobile Fuses boast impressive ratings. They have a rated voltage of 150VDC and can handle current levels of up to 1.0In for more than four hours and up to 3.0In for a maximum of 10 seconds. This means that the fuses can handle high levels of current without tripping or blowing out, ensuring maximum protection for the electrical system.

The ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE is available for a minimum order quantity of 100 units, with a price range of 1.5~2USD per unit. The fuses come packaged in cartons and have a delivery time of 2~4 weeks. The payment terms are T-T, and the supplier can offer a supply capacity of up to 1000K/PCS.



Customization:

Our Ceramic Automotive Fuses, also known as Ceramic Vehicle Fuses and Ceramic Automobile Fuses, come under the Brand Name ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE. The Model Number for this product is A202001, which is available in 100A, 150A, 200A, 250A, 300A, and 350A. These fuses are made in China and hold a UL Certification. The Minimum Order Quantity for this product is 100 and the price ranges from 1.5~2USD. The packaging details for this product are a Carton and the delivery time is 2~4 weeks. We accept T-T as the payment term and have a Supply Ability of 1000K/PCS. The mounting method for this product is SCREW BOLT and its voltage is 150VDC. The Material used to manufacture these fuses is Ceramic Copper Silver Quartz Sand Gold and the Hole Distance is 39mm. The available Electric Currents for this product are 100A, 150A, 200A, 250A, 300A, 350A, 400A, and 500A.



Support and Services:

Our Ceramic Automotive Fuses are designed to protect your vehicle's electrical system from overloading and short circuits. These fuses are made of high-quality ceramic materials that ensure durability and reliability in extreme temperature conditions. Our product technical support team is available to assist with any questions or concerns you may have regarding the installation or usage of our fuses. Additionally, we offer a range of services, including testing and analysis, to ensure that our fuses meet your specific needs and requirements. Contact us for more information on our Ceramic Automotive Fuses technical support and services.



Packing and Shipping:

Product Packaging:

  • 100 ceramic automotive fuses per box
  • Each fuse is individually wrapped for protection
  • Box dimensions: 6in x 4in x 2in

Shipping:

  • Ships within 24-48 hours of order placement
  • Standard shipping within the US takes 3-5 business days
  • International shipping available with additional fees
  • Package is securely wrapped and labeled for shipment


FAQ:

Q: What is the brand name of the ceramic automotive fuses?

A: The brand name of the ceramic automotive fuses is ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE.

Q: What are the different model numbers available for the ceramic automotive fuses?

A: The model numbers available for the ceramic automotive fuses are A202001 100A, A202001 150A, A202001 200A, A202001 250A, A202001 300A, and A202001 350A.

Q: Where are the ceramic automotive fuses manufactured?

A: The ceramic automotive fuses are manufactured in China.

Q: What certifications do the ceramic automotive fuses have?

A: The ceramic automotive fuses have UL certification.

Q: What are the payment terms for purchasing the ceramic automotive fuses?

A: The payment terms for purchasing the ceramic automotive fuses are T-T.
