Ceramic Gas Discharge Tube Arresters 8x6mm For Transient Voltage Protect Gas Discharge Tube
Product Details:
| Place of Origin: | China |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | ZM86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Type: | Ceramic Gas Discharge Tube | Dimension: | 8x6mm |
|---|---|---|---|
| Breakdown Voltage: | 800V | Voltage Error: | ±20 |
| Inrush Current: | 20KA | Power Frequency Current: | 20A |
| High Light: | gdt gas discharge tube,electrode arrester,Gas Discharge Tube Arresters 8x6mm |
||
Product Description

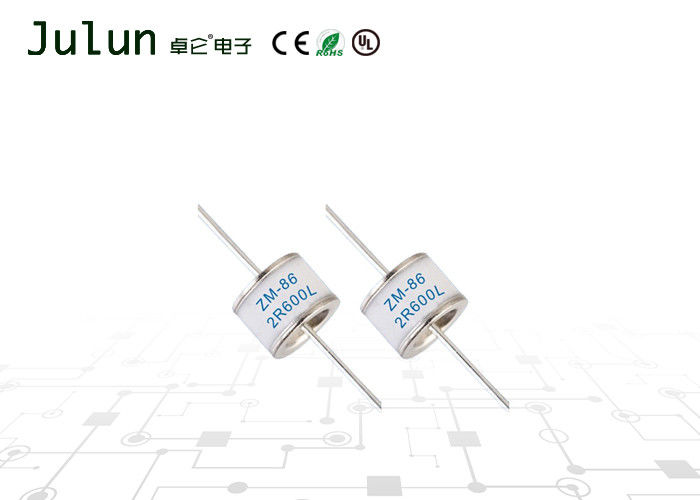

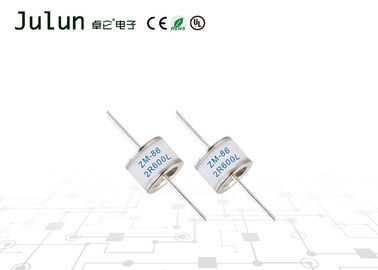

Ceramic Gas Discharge Tube Arresters 8x6mm For Transient Voltage Protect Gas Discharge Tube
Ceramic Gas Discharge Tube Arresters 8x6mm For Transient Voltage Protect Gas Discharge Tube
| Type(have no lead wire)Ф8×6mm | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 |
| 2R-75 | 2R-90 | 2R-150 | 2R-230 | 2R-250 | 2R-350 | 2R-420 | 2R-470 | 2R-500 | 2R-600 | 2R-800 | |
| Type(have lead wire)Ф8×6mm | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 | ZM86 |
| 2R-75L | 2R-90L | 2R-150L | 2R-230L | 2R-250L | 2R-350L | 2R-420L | 2R-470L | 2R-500L | 2R-600L | 2R-800L | |
| Nominal DC Spark-over voltage 100V/s(v) | 75 | 90 | 150 | 230 | 250 | 350 | 420 | 470 | 500 | 600 | 800 |
| Deviation of VS (V)% | ±25 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 |
| Impulse spark-over voltage 1KV/μs(V) | ≤600 | ≤600 | ≤650 | ≤700 | ≤750 | ≤900 | ≤1000 | ≤1100 | ≤1200 | ≤1300 | ≤1600 |
| Impulse discharge current10/350μs(KA)1times | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Impulse discharge current 8/20μs(KA) 10times | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 15-20 |
| Impulse discharge current 10/1000μs(A/times) | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 | 200/300 |
| Alternating discharge current 50Hz 10times(A) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Insulation resistance (Ω) | ≥108 | ≥108 | ≥109 | >109 | >109 | >109 | >109 | >109 | >109 | >109 | >109 |
| Capacitance (1 MHz) pF | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 | <1.3 |
1. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2. What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3. What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4. Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
5. How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very beginning to the end.
6. Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
