Fast Break Electronic Circuit Board Fuses Glass Tube Fuse 6mm X 30mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | 611 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Material: | Glass | Dimension: | 6*30mm |
|---|---|---|---|
| Breaking Capacity: | Fast | Rated Voltage: | 250VAC/150VAC |
| High Light: | mini cartridge fuse,small electronic fuses |
||
Product Description

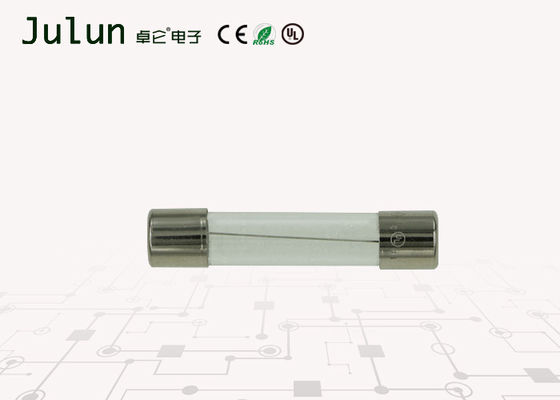

Electronic Circuit Board Fuses Glass Fuse 6*30 Mm Fast Break
Main Characteristics
Cartridge miniature fuse; Quick-Acting (F)
Standard
UL 248-14 (IEC 60127-2)
Materials
Tube: Glass Tube
End Caps: Nickel-plated brass
Axial Leads: Nickel-plated caps
Tin-plated copper wires
Operating Temperature
-55℃ to +125℃
Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)
Time vs Current Characteristics: UL 248-14
| Rated Current | 100% | 110% | 115% | 135% | 200% | 210% | 275% | 400% | 1000% |
| 500mA~20A | >4h | / | / | <1h | <10s | / | / | / | / |
| 12.5A/16A(IEC) | / | / | >1h | / | / | <60s | 20ms~3s | 8ms~1s | ≤150ms |
| 15A/20A/25A(PSE) | / | >1.5h | / | <1h | <120s | / | / | / | / |
| Amp Code |
Rated Current |
Max. Voltage |
Nominal Melting I²t(A²sec) |
Breaking Capacity |
| 0500 | 500mA | 250V AC | 0.49 | 10kA@125V AC 35A@250V AC 50-60Hz Cosφ=0.7-0.8 |
| 0630 | 630mA | 0.81 | ||
| 0800 | 800mA | 1.21 | ||
| 1100 | 1.00A | 1.00 | 10kA@125V AC 100A@250V AC 50-60Hz Cosφ=0.7-0.8 |
|
| 1125 | 1.25A | 1.44 | ||
| 1150 | 1.50A | 2.1 | ||
| 1160 | 1.60A | 4.84 | ||
| 1200 | 2.00A | 7.29 | ||
| 1250 | 2.50A | 11.2 | ||
| 1300 | 3.00A | 24 | ||
| 1315 | 3.15A | 26.1 | 10kA@125V AC 200A@250V AC 50-60Hz Cosφ=0.7-0.8 |
|
| 1350 | 3.50A | 34.81 | ||
| 1400 | 4.00A | 49 | ||
| 1500 | 5.00A | 81 | ||
| 1600 | 6.00A | 121 | ||
| 1700 | 7.00A | 156 | ||
| 1800 | 8.00A | 219 | ||
| 2100 | 10.00A | 324 | ||
| 2120 | 12.00A | 729 | ||
| 2125 | 12.50A | 767 | ||
| 2150 | 15.00A | 1936 | ||
| 2160 | 16.00A | 2025 | ||
| 2200 | 20.00A | 3600 |
Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
(2) The cURus and cULus certification by 125V and 250V; the CQC certification by 250V;
the PSE certification by 125V
