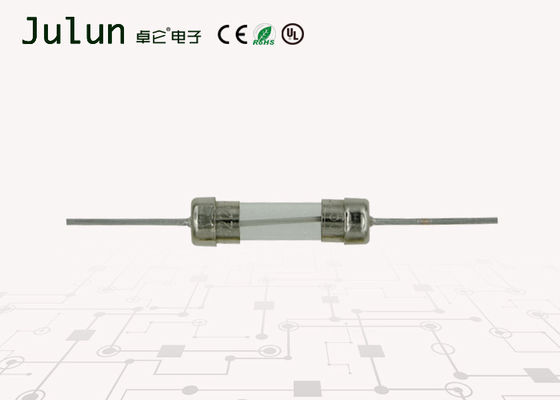

5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires

China 5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires supplier
5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires supplier 5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires supplier

Large Image :  5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 521/522

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Material: Glass Dimension: 5*20mm
Breaking Capacity: Fast Rated Voltage: 250VAC

Electronic Fuse 5*20 Mm Glass Fuse Circuit Board Protection Quick Break



OC_521-datasheet.pdf

OC_522-datasheet.pdf



Product Details



Main Characteristics
Cartridge miniature fuse;Quick- Acting(F)


Standard
UL 248-14


Materials
Tube: Glass Tube
End Caps: Nickel plated brass
Axial Leads: Nickel plated caps
Tin-plated copper wires


Operating Temperature
-55℃ to +125℃


Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%


Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration


Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)



Time vs Current Characteristics: UL 248-14

Rated Current 100% 135% 200%
250mA~15A >4h <1h <5s



Electrical Characteristics



Amp
Code
Rated
Current
Max.
Voltage
Nominal
Melting I²t(A²sec)
Breaking
Capacity
0250 250mA 250V AC 0.051 10kA@125V AC
35A@250V AC
50-60Hz
Cosφ=0.7~0.8
0315 315mA 0.098
0400 400mA 0.168
0500 500mA 0.25
0630 630mA 0.397
0750 750mA 1.51
0800 800mA 1.82
1100 1.00A 2.89 10kA@125V AC
100A@250V AC
50-60Hz
Cosφ=0.7~0.8
1125 1.25A 1.00
1150 1.50A 1.1
1160 1.60A 1.18
1200 2.00A 4.84
1250 2.50A 8.72
1300 3.00A 12.96
1315 3.15A 14.94
1350 3.50A 20.25
1400 4.00A 28.09 10kA@125V AC
200A@250V AC
1500 5.00A 51.84
1630 6.30A 76.67
1700 7.00A 100 100A@125V AC
100A@250V AC
50-60Hz
Cosφ=0.7~0.8
1800 8.00A 132.2
2100 10.00A 204.5
2120 12.00A 289
2150 15.00A 441



Note: (1) Permissible continuous operating current is 100% at ambient temperature of 23°C (73.4°F)
(2) The cURus certification by 125V and 250V, the PSE certification only by 250V.



Dimensions



5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires

5x20mm Glass Electronic Circuit Board Fuses 250VAC With Tin - Plated Copper Wires
