Ceramic / Glass Electronic Circuit Board Fuses 3.6x10mm 250VAC Rated Voltage

China Ceramic / Glass Electronic Circuit Board Fuses 3.6x10mm 250VAC Rated Voltage supplier

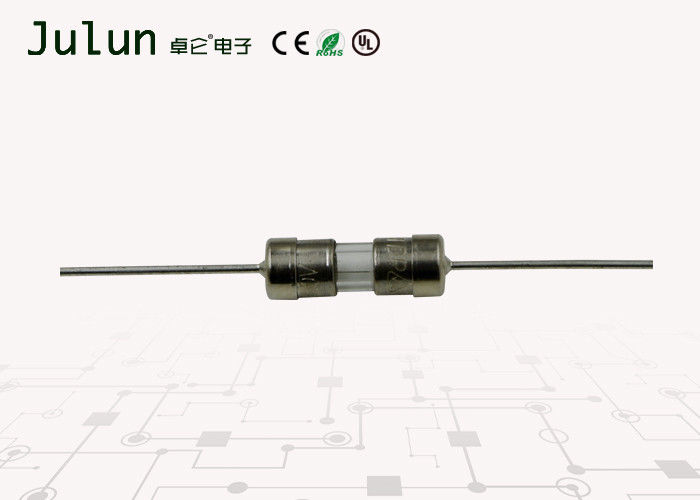

Large Image :  Ceramic / Glass Electronic Circuit Board Fuses 3.6x10mm 250VAC Rated Voltage

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 332

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Material: Glass Dimension: 3.6*10mm
Breaking Capacity: Fast Rated Voltage: 250VAC

3.6*10 Mm Ceramic / Glass Electronic Fuse Fast Break Circuit Protection



OC_332-datasheet.pdf



Product Details



Main Characteristics
Axial subminiature fuse; Quick-Acting (F)


Standard
IEC-60127-3/Ⅲ
Materials
Tube: Glass Tube
End Caps: Nickel plated brass
Axial Leads: Nickel plated caps
Tin plated copper wires


Operating Temperature
-55℃ to +125℃


Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%


Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration


Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)



Time vs Current Characteristics: IEC-60127-3/Ⅲ

Rated Current 150% 210% 275% 400% 1000%
250mA~10A >1h <30min 10ms~3s 3ms~300ms ≤20ms



Electrical Characteristics



Amp
Code
Rated
Current
Max.
Voltage
Max .
Voltage drop
(mV)
Max. Power
Dissipation
(mW)
Nominal
Melting I²t(A²sec)
Breaking
Capacity
0250 250mA 250V AC 440 289 0.093 50A@125V AC
35A or 10In@250VAC
50-60Hz
Cosφ=1.0
0300 300mA 420 331 0.131
0315 315mA 400 331 0.152
0350 350mA 390 331 0.172
0375 375mA 380 389 0.203
0400 400mA 370 389 0.23
0500 500mA 350 459 0.384
0630 630mA 320 529 0.656
0750 750mA 310 630 0.941
0800 800mA 300 630 1.00
1100 1.00A 280 375 2.25
1125 1.25A 280 919 2.57
1150 1.50A 250 1050 2.77
1160 1.60A 250 1050 2.89
1200 2.00A 240 1260 2.25
1250 2.50A 200 1313 6.75
1300 3.00A 180 1488 12.86
1315 3.15A 180 1488 13.69
1350 3.50A 170 1488 16.05
1400 4.00A 160 1680 22.09
1500 5.00A 150 1969 39.69
1630 6.30A 150 1969 62.41
1700 7.00A 150 1969 72.25 50A@125V AC Cosφ=1.0
50A@250V AC Cosφ=1.0
1800 8.00A 150 1969 92.16
2100 10.00A 150 1969 156.3



Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
(2) The cURus certification by 125V and 250V; the others certification by 250V.



Dimensions
