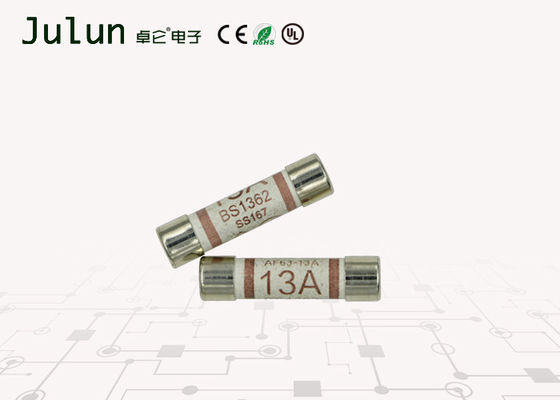

264V AC Electronic Circuit Board Fuses 6x25mm British Plug UK Specification
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | BS1362 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Standard: | British Plug To Fuse | Materials: | Ceramic |
|---|---|---|---|
| Operating Temperature: | -55℃ To +125℃ | Storage Conditions: | +10℃ To +60℃ |
| End Caps: | Nickel-plated Brass | ||
| Highlight: | mini cartridge fuse,small electronic fuses |
||
Product Description
264V AC Electronic Circuit Board Fuses 6x25mm UK specification
Main Characteristics
British plug to fuse; fast/medium-acting
Standard
BS1362-1973
Materials
Tube: Ceramic
End caps: Nickel-plated brass
Operating Temperature
-55℃ to +125℃
Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)
| Time vs Current Characteristics: BS1362-1973 | |||
| Rated Current | 100% | 160% | 190% |
| 1A～13A | >1000h | >30min | <30min |
| Amp Code | Rated Current | Max. Voltage | Breaking Capacity | Nominal Melting I²t(A²sec) | Max. Power Dissipation |
| 1100 | 1A | 264V AC | 6kA@ 264V AC 50Hz P.f.0.3-0.4 |
1.44 | 1W |
| 1200 | 2A | 8.73 | |||
| 1300 | 3A | 29.16 | |||
| 1500 | 5A | 144 | |||
| 1700 | 7A | 146.4 | |||
| 2100 | 10A | 324 | |||
| 2130 | 13A | 961 |
Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
