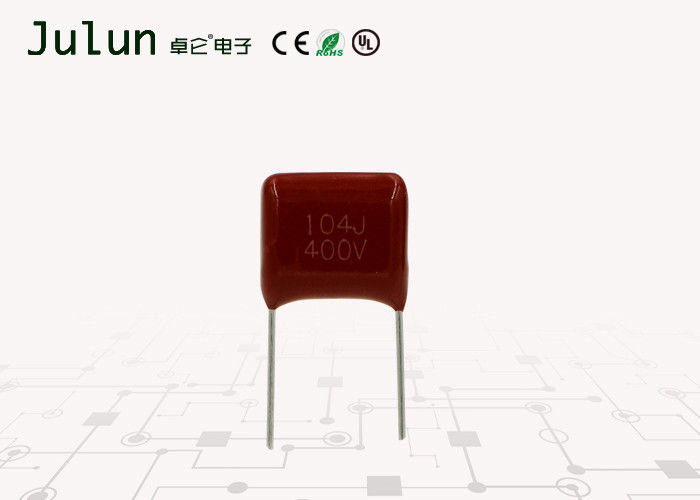

Plug In Polyester Film Capacitor 104J 400V Low Pulse Good Self Healing
Product Details:
| Place of Origin: | China |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | 104J/400V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Model Number: | CBB22/21 | Type: | Polypropylene Film Capacitor, CBB Capacitor |
|---|---|---|---|
| Application: | General Purpose, General Purpose | Package Type: | Through Hole |
| Capacitance: | 0.0 1-6.8uF | Rated Voltage: | 250V 400V/450V 630V |
| Operating Temperature: | -40°C~ +105°C(+85°C~ +105°C) | ||
| Highlight: | metallized film capacitor,metalized polypropylene capacitors |
||
Product Description
Small size, good self-healing, high impact strength.
DC and low pulse conditions. Such as: low frequency filtering, DC and bypass. Depressurization.
It is not recommended for use in AC filters, oscillations, and high frequency occasions
| Model | nominal μF
| rated
| Grade | Dimension(mm) | |||||
| W±0.5 | H±0.5 | T±0.5 | P±0.5 | Lmin | Φd | ||||
| 223J250V | 0.022 | 250V | J | 9 | 8 | 4.5 | 7.5 | 22 | 0.6 |
| 223J630V | 0.022 | 630V | J | 9 | 8 | 4.5 | 7.5 | 22 | 0.6 |
| 475J630V | 4.7 | 630V | J | 33 | 22 | 14 | 31.5 | 22 | 0.8 |
| 105J630V | 1.5 | 630V | J | 22 | 17 | 10.5 | 20 | 22 | 0.8 |
| 154J250V | 0.15 | 250V | J | 11.5 | 8.5 | 4.5 | 10 | 22 | 0.6 |
| 103J630V | 0.01 | 630V | J | 11.5 | 7.5 | 4.5 | 10 | 22 | 0.6 |
| 104J630V | 0.1 | 630V | J | 11.5 | 10 | 5 | 10 | 22 | 0.6 |
| 104J250V | 0.1 | 250V | J | 9 | 8.5 | 5 | 7.5 | 22 | 0.6 |
| 473J630V | 0.047 | 630V | J | 9.5 | 8 | 5 | 7.5 | 22 | 0.6 |
| 473J250V | 0.047 | 250V | J | 9.5 | 8.5 | 5 | 7.5 | 22 | 0.6 |
| 104J400V | 0.1 | 400V | J | 16.5 | 10 | 6 | 15 | 22 | 0.6 |
| 104J630V | 0.1 | 630V | J | 16.5 | 10 | 5.5 | 15 | 22 | 0.6 |
| 153J630V | 0.015 | 630V | J | 9 | 6.5 | 3.5 | 7.5 | 22 | 0.6 |
| 475J400V | 4.7 | 400V | J | 27 | 20 | 12.5 | 25 | 22 | 0.8 |
Storage conditions: temperature: below 35 centigrade, relative humidity: less than 65%, no acid and alkali corrosion.
Storage time: please use it in 1 years, or it may lead to the oxidation of the lead.
