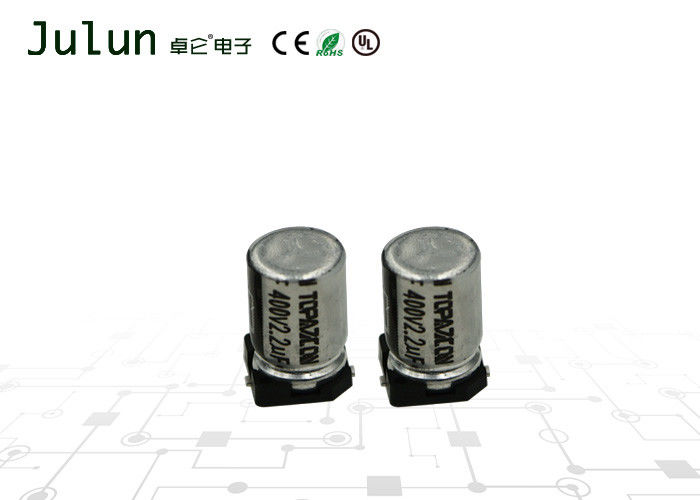

400V 2.2UF 105°C ±20% SMD Aluminum Electrolytic Capacitor 6.3×9mm TF -5000 Hours

400V 2.2UF 105°C ±20% SMD Aluminum Electrolytic Capacitor 6.3×9mm TF -5000 Hours

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: TF-5000

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Type: Electrolytic Capacitor Application: General Purpose
Model Number: TF-5000 Package Type: Aluminum
Capacitance: 2.2uF Rated Voltage: 400V
Operating Temperature: 105°C
High Light:

metallized polypropylene film capacitor

,

metalized polypropylene capacitors

Product Description

400V 2.2UF 105°C ±20% SMD Aluminum Electrolytic Capacitor 6.3×9mm TF -5000 Hours

SCOPE

Unless otherwise specified, the standard range of atmospheric conditions for
making measurements and tests are as follows.
Ambient temperature :15℃to 35℃
Relative humidity :45% to 75%
Air pressure :86kpa to 106kpa
If there may be doubt on the results, measurements shall be made within the following limits
Ambient temperature :20±1℃
Relative humidity :60% to 67%
Air pressure :86kpa to 106kpa



ELECTRICAL CHARACTERISTICS



Rated voltage: DC.Voltage+peak ripple Voltage≤Rated 6.3V.DC~450V.DC Voltage

Capacitance:Range of Capacitance: 0.1 uF

Measuring frequency: 120Hz±20% ~1000uF
Measuring circuit: Series equivalent circuit Capacitance tolerance:±20%

Measuring voltage: 0.5Vrms or less +1.5 to 2.0VDC



Dimensions (mm)



400V 2.2UF 105°C ±20% SMD Aluminum Electrolytic Capacitor 6.3×9mm TF -5000 Hours 0

Size code D L A B C W P a
2.2uF/400v/6.3×9/105℃/±20% 6.3 9.5 6.6 6.6 7.2 0.5‐0.8 1.9 0.5



Characteristics



TOPAZCON

Part No.

Capacitance

(uF)

Tolerance on Rated

Capacitance

(%)

Rated

Voltage

(Vdc)

Surge

Voltage

 (Vdc)

Operating

Temp. Range

( ℃ )

tanδ

(120Hz)

(Max)

MaxLeakage

Current

(uA)(1min.)

Max Ripple

Current (mA)

at105℃ 100kHz

Endurance

at105℃(Hours)

Appearance

Drawing No.

ETF2G2R2

M06090Y

2.2 ±20 400 440 -40~105 0.24 135.2 30 5000 FIG-1



FAQ


1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c

like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very

beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
