Super Small Electronic Circuit Board Fuses 250 Volt 382 Series Quick Break

China Super Small Electronic Circuit Board Fuses 250 Volt 382 Series Quick Break supplier

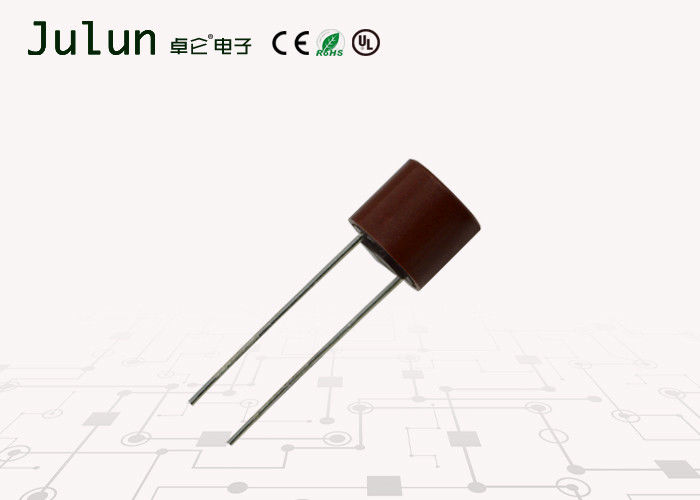

Large Image :  Super Small Electronic Circuit Board Fuses 250 Volt 382 Series Quick Break

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 382

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
AC Voltage (V): 250 Resistance: Low Internal Resistance
Material: Anti Electric Shock Shell Install: Soft Welding Or Insertion
Authentication: UL CCC

Super Small Electronic Circuit Board Fuses 250 Volt 382 Series Quick Break



Description



The 382 Series are TE5 Time-Lag type Fuses, 250V
rated, with enhanced breaking capacity and designed in
accordance to IEC 60127-3.



Features



Halogen free, Lead-free and RoHS compliant
Reduced PCB space requirements
Direct solderable or plug-in versions
100A breaking capacity
Internationally approved
Low internal resistance
Shock safe casing
Vibration resistant
Available from 1A to 10A



Applications



Battery Chargers
Consumer Electronics
Power supplies
Industrial Controllers



Electrical Characteristics



% of
Ampere
Rating
Opening Time
1A - 6.3A 8A - 10A
150% 1 Hour, Min. 1 Hour, Min.
210% 2 Minutes, Max. 300 s, Max.
275% 400 ms, Min. ;
10 Sec., Max.
1 s, Min. ; 20 s, Max.
400% 150 ms, Min. ;
3 Sec., Max.

150 ms, Min. ;

3 Sec., Max.

1000% 20 ms, Min. ; 150 ms, Max. 20 ms, Min. ; 150 ms, Max.




Amp
Code
Rated
Current
Voltage
Rating
Breaking
Capacity
Nominal
Cold
Resistance
(Ohms)
Voltage
Drop
1.0×IN
max. (mV)
Power
Dissipation
1.5×IN
max. (mW)

Melting Integral

10×IN

min. (A2s)
1100 1.00 A 250 V 100A @250VAC 0.0625 100 400 4.85
1125 1.25 A 250 V 0.05 95 465 6.88
1160 1.60 A 250 V 0.0377 90 490 12.67
1200 2.00 A 250 V 0.028 85 670 17.8
1250 2.50 A 250 V 0.0215 80 750 29.69
1315 3.15 A 250 V 0.0176 75 900 45.35
1400 4.00 A 250 V 0.0138 70 1200 72
1500 5.00 A 250 V 0.0108 65 1250 121.25
1630 6.30 A 250 V 0.0076 65 1400 148.84
1800 8.00 A 250 V 0.0059 63 1600 233.6
2100 10.00 A 250 V 0.0042 57 1600 365



Notes:
1. 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
2. Resistance is measured at 10% of rated current, 25°C.



Dimensions



Super Small Electronic Circuit Board Fuses 250 Volt 382 Series Quick Break
