• 1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection
1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection

1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 476

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Materials: Ceramics Operating Temperature: -55℃ To +125℃
Storage Conditions: +10℃ To +60℃ Time Current Characteristics: Slow Fuse (T)
Breaking Ability: 150A@250Vac[500mA~10A], 50A@400Vdc[500mA~3.15A], 150A@250Vdc[4A~5A],500A@72Vdc[6.3A~10A] Authentication Through: CURus, VDE, CQC, PSE, KC, TUV
High Light:

slow blow micro fuse

,

mini cartridge fuse

Product Description

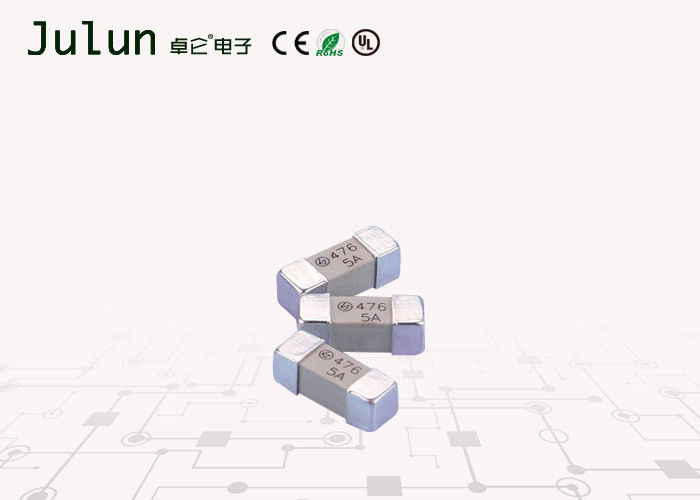

1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection

1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection



476-datasheet.pdf



Main Characteristics
Brick fuse; Time-Lag(T)
Standard
UL-248-14
Materials
Body: Ceramic
End Caps: Copper plated with silver
Operating Temperature
-55℃ to +125℃
Stock Temperature
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤10 sec (Wave Soldering)
300℃.≤2 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec.
280℃. 5 sec. (IEC 60068-20)





Time vs Current Characteristics: UL-248-14
Rated Current 100% 200%
500mA~10A >4H <60s



Electrical Characteristics



1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection 0

Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

          (2) The current values used for calculating I2T should be within the standard range of 10ms.



Dimension



1140 Series 4476 Chip 3a 250v Slow Blow Fuse Battery Current Protection 1



FAQ



1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before

shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your

a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the

very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.



Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.



P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
