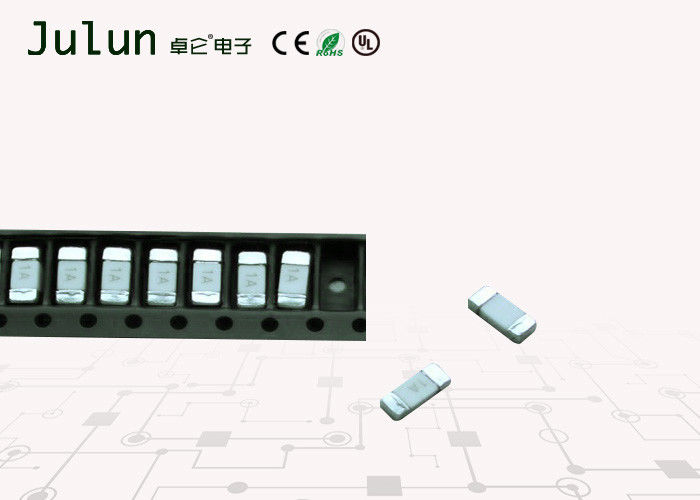

• Ceramic Electronic Circuit Board Fuses  Slow Blow Micro Fuses 246-2410 Series Chip
Ceramic Electronic Circuit Board Fuses  Slow Blow Micro Fuses 246-2410 Series Chip

Ceramic Electronic Circuit Board Fuses Slow Blow Micro Fuses 246-2410 Series Chip

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 246

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Materials: Ceramics Operating Temperature: -55℃ To +125℃
Storage Conditions: +10℃ To +60℃ Time Current Characteristics: Slow-blown (T)
Breaking Ability: 50A@350Vac Authentication Through: CURus, VDE, CQC, PSE, KC, TUV
High Light:

slow blow micro fuse

,

mini cartridge fuse

Product Description

Ceramic Electronic Circuit Board Fuses Slow Blow Micro Fuses 246-2410 Series Chip

Ceramic Electronic Circuit Board Fuses , Slow Blow Micro Fuses 246-2410 Series Chip



OC_246-datasheet.pdf



The 246 series fuses are characterized by small size, high performance and high reliability. Used in over-current protection circuits such as notebook computers, telecommunication systems, LCD/PDP TVs, wireless products, and liquid crystal displays.



Main Characteristics
SMD fuse;Time-Lag(T)
Standard
UL-248-14
Materials
Body: Ceramic
End Caps: Copper plated with silver
Operating Temperature
-55℃ to +125℃
Stock Temperature
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤10 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec.
280℃. 5 sec. (IEC 60068-20)



Time vs Current Characteristics: UL-248-14
Rated Current 100% 200%
250mA~7A >4h <120s





Specifications



Ceramic Electronic Circuit Board Fuses  Slow Blow Micro Fuses 246-2410 Series Chip 0

Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

          (2) The current values used for calculating I2T should be within the standard 10In.



Dimension



Ceramic Electronic Circuit Board Fuses  Slow Blow Micro Fuses 246-2410 Series Chip 1
