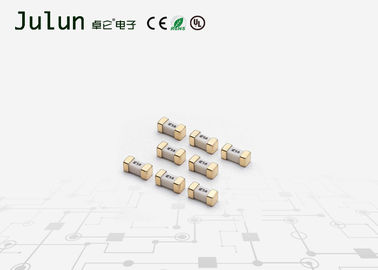

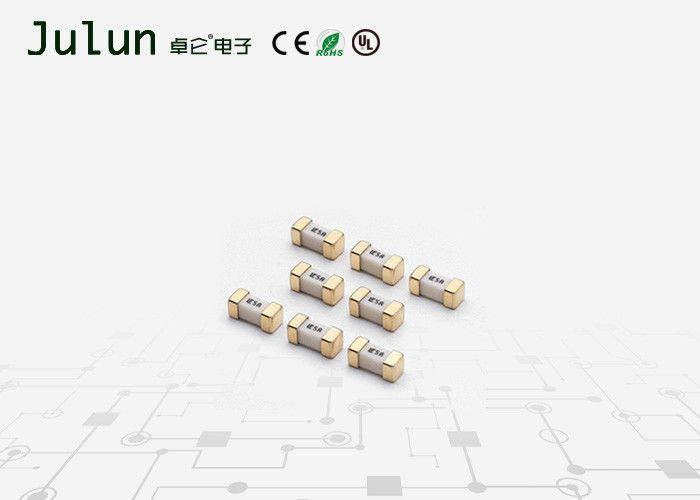

451 Series Fast-Acting Subminiature Surface Mount Fuse 125V Chip Fuse
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 / Negotiable|
|Packaging Details:||Standard carton|
|Delivery Time:||7~10 Working days|
|Payment Terms:||L/C, D/P, T/T,|
|Rated Curr0.50A - 5.0Aent:||0.62A~20A||Decoupling Ability:||Time Delay Type|
|Authentication Through:||UL / KC / PSE /|
slow blow micro fuse,
mini cartridge fuse
Fast-Acting Subminiature Surface Mount Fuse 125V Chip Fuse
451 Series The SMF Fuse is a very small, Wire-in-Air (WIA)
square shape surface mount fuse that was designed for
secondary side circuit over-current protection applications.
These fuses are designed for PCB using surface mount
• Very fast-acting
• Small size
• Wide range of current rating available (0.062A to 20A)
• Wide operating temperature range
• Low temperature rerating
• RoHS compliant and Halogen Free
• Notebook PC • LCD/PDP TV • LCD monitor • LCD/PDP panel • LCD backlight inverter • Portable DVD player • Power supply • Networking • PC server • Cooling fan system • Storage system • Telecom system • Wireless basestation • White goods • Game console • Office Automation equipment • Battery charging circuit protection • Industrial equipment
|% of Ampere Rating||Ampere Rating||Opening Time|
|100%||0.062 – 20||4 hours, Minimum|
|200%||0.062 – 10||5 sec., Maximum|
|12 – 20||20 sec., Maximum|
|Ampere Rating||Amp Code||Max Voltage Rating||Interrupting Rating||Nominal Cold Resistance||Nominal Melting|
50A @125VAC/VDC 10,000A @75VDC
PSE: 100A @100VAC
PSE: 100A @100VAC
