463 Series Very Fast Acting Subminiature Surface Mount Fuse High Current Protection

China 463 Series Very Fast Acting Subminiature Surface Mount Fuse High Current Protection supplier

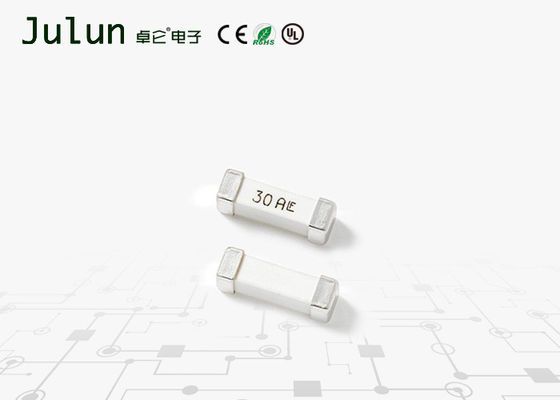

Large Image :  463 Series Very Fast Acting Subminiature Surface Mount Fuse High Current Protection

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 463

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Materials: Plastic Shell Rated Voltage: 250V
Rated Curr0.50A - 5.0Aent: 15A~30A Decoupling Ability: Time Delay Type
Authentication Through: UL / KC / PSE /

463 Series Very Fast Acting Subminiature Surface Mount Fuse High Current Protection



Fuse_463_Datasheet.pdf



The 463 series fuse is a fast-acting, very high
current fuse designed for high operating current applications.
It offers superior thermal cycling endurance of 500 cycles
with its low temperature rise and excellent temperature
stability characteristics, it is ideal to be used in datacom and
telecom equipment such as high end server, base station,
power supplies, and blade computing applications.
The 463 series offers high-amp circuit protection, ultra-high
interrupting ratings (up to 500A@ 72VDC) and small size
(10.1 mm x 3.12 mm x 3.12 mm) and surface-mount formfactor
to help space saving.



Features

• Surface mount fuse in a small footprint

• High current rating 15A-30A

• Higher voltage rating up to 100VDC and 250VAC

• High melting i2t

• Enhanced thermal cycling endurance

• Operating temperature range from -55°C to 125°C

• RoHS Compliant and Halogen-Free



Applications

• High end servers / Blade computing • Base station power supply • Voltage regulator module • Cooling fan system for PC Server • Advance Telecommunication Computing Architecture (ATCA) applications for cloud computing • Battery Management System (Industrial Tools)





Electrical Characteristics for Series



% of Ampere Rating Opening Time
100% 4 Hours, Min.
200% 60 Second, Max.



Electrical Specifications by Item



Ampere Rating Ampere Code Max Voltage Rating Interrupting Rating Nominal Cold Resistance Nominal Melting
15 15 250 100A@250VAC
300A@65VAC
300A@65VAC
500A @ 72VDC
50A@100VDC
1000A @ 32VDC
800A @ 57VDC
1400A @ 48VDC
2500A @ 12VDC
0.0047 142
20 20 250 0.0027 433
25 25 250 100A @ 250VAC
300A @ 65 VAC
500A @ 72VDC
50A@100VDC
1000A @ 32VDC
800A @ 57VDC
1400A @ 48VDC
2500A @ 12VDC
0.00215 668
30 30 250 0.00193 916




Dimensions



463 Series Very Fast Acting Subminiature Surface Mount Fuse High Current Protection
