Electronic Circuit Board Fuses 476 Series 250V Fast-Acting Subminiature Surface Mount Fuse

China Electronic Circuit Board Fuses 476 Series 250V Fast-Acting Subminiature Surface Mount Fuse supplier

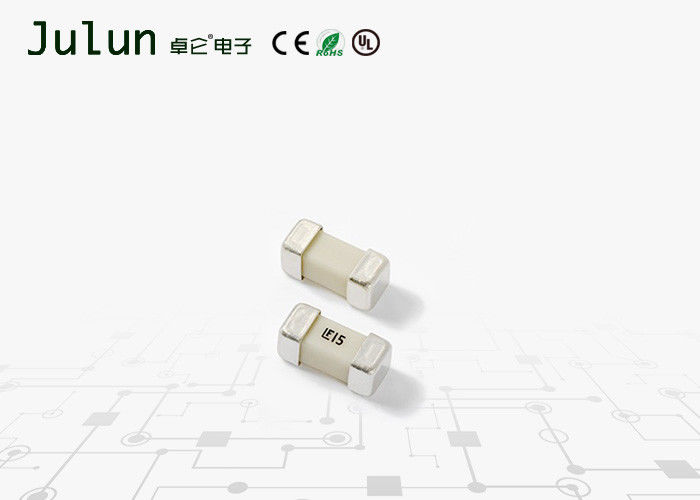

Large Image :  Electronic Circuit Board Fuses 476 Series 250V Fast-Acting Subminiature Surface Mount Fuse

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 476

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Materials: Ceramics Rated Voltage: 250V
Rated Curr0.50A - 5.0Aent: 1A~15A Decoupling Ability: Time Delay Type
Authentication Through: UL / KC / PSE /

Electronic Circuit Board Fuses 476 Series 250V Fast-Acting Subminiature Surface Mount Fuse



Fuse_476_Datasheet.pdf



The 476 Series is a family of 250V rated fuses with a very
small 2410 footprint. It is the smallest SMD fuse with this
high voltage rating and is designed to mainly serve as
primary side circuit protection for compact devices with
high voltage requirements.



Features

• Small 2410 Footprint

• 250V Voltage Rating (1A to 5A)

• High Interrupting Ratings

• Fast-Acting

• RoHS Compliant and Halogen-Free

• Designed in accordance with IEC 60127-4 Universal Modular Fuse requirement

• Wide Operating temperature range of -55°C to 125°C

• IEC 61000-4-5 2 ed. Surge Immunity Test Compliant (1.2 x 50us/8x20us combination wave 500V/250A for <25W Lamp Category) – 3A and above ampere rating only







Electrical Characteristics for Series



% of Ampere Rating Ampere Rating Opening Time
100% 1A - 15A 4 Hour, Minimum
150% 1A - 5A 1 Hour, Minimum
200% 1A - 15A 120 Sec., Maximum
1000% 1A - 5A 0.001 Sec., Min; 0.01 Sec., Max



Electrical Specifications by Item



Ampere Rating Amp Code Max Voltage Rating Interrupting Rating Nominal Cold Resistance Nominal Melting
1 1 250V 100A @ 250VAC
300A @ 125VDC
10kA @ 86VDC
0.1575 0.193
1.25 1.25 250V 0.122 0.276
1.6 1.6 250V 0.0825 0.62
2 2 250V 0.0448 0.53
2.5 2.5 250V 0.0363 0.91
3 3 250V 0.0277 1.66
3.5 3.5 250V 0.0234 2.356
4 4 250V 0.01839 2.82
5 5 250V 0.0157 4
6.3 6.3 125V 100A@125VAC
300A@125VDC 10kA@86VDC
0.0126 7.5
7 7 125V 0.0116 7.8
8 8 125V 0.0112 9.757
10 10 125V 0.0096 14.879
12 12 125V 0.006 20.635
15 15 125V 0.0045 61.286




Dimensions



Electronic Circuit Board Fuses 476 Series 250V Fast-Acting Subminiature Surface Mount Fuse





FAQ



1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, moneygram,70% deposit in advance and 30% balance before

shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your

a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the

very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.



Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.



P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
