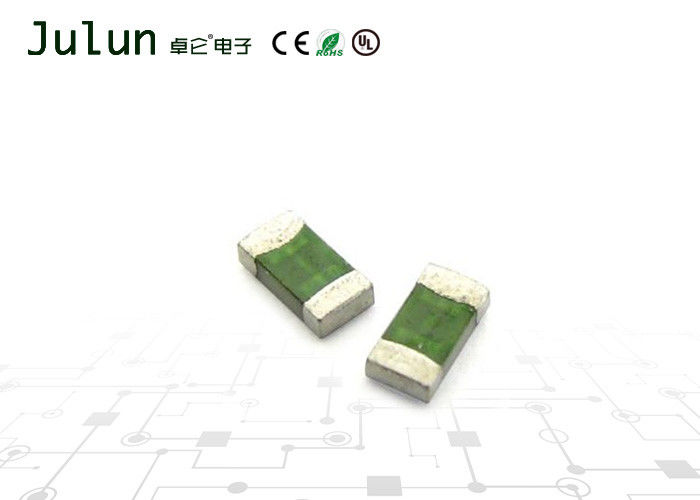

12113 Series Electronic Circuit Board Fuses 1206 Fast Linear Voltage SMD Fuse

1206 Fast Linear Voltage SMD Fuse 12113 Series Electronic Circuit Board Fuses



12 113 Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.



AEC-Q200 Automotive Grade Certified

Rapid interruption of excessive current

Compatible with reflow and wave solder

Excellent environmental integrity

One time positive disconnect

Lead Free and Halogen free material



Electrical Characteristics
Rated Current 1.0In 2.5In 3.5In
250mA ~ 5A 4 hour min 5 sec Max /
6A ~ 20A 4 hour min / 5 sec Max



Specifications



Part No. Rated Voltage Rated Current (A) Breaking Capacity (A)1 Typical Cold.Resistance (mOhms) 2 Typical Voltage Drop (mV) Typical Pre-Arcing I2 t (A2Sec) 3 Alpha Marking
AC DC   AC/DC
12 113.0.25 125V 125V 250mA 50A 3608 1407 0.00012 0.25
12 113.0.375 375mA 50A 1882 718 0.0003 E
12 113.0.5 500mA 50A 1028 650 0.0005 0.5
12 113.0.75 750mA 50A 850 1000 0.009 0.75
12 113.1 1A 50A 240 300 0.0075 H
12 113.1.25 1.25 50A 175 290 0.009
12 113.1.5 1.5A 50A 125 250 0.013 1.5
12 113.2 —— 2A 50A 80 200 0.04 N
12 113.2.5 2.5A 50A 38 140 0.045 2.5
12 113.3 3A 50A 32 130 0.065 P
12 113.3.5 72V 3.5A 50A 25 120 0.08 3.5
12 113.4 4A 50A 20 110 0.11 S
12 113.5 5A 50A 15 100 0.185 T
12 113.6 —— 72V
63V
6A 50A 15.5 140 8 F
12 113.7 7A 50A 11.5 130 10 7
12 113.8 —— 48V
32V
8A 150A 7.6 123 12 M
12 113.10 10A 150A 5.5 110 18 U
12 113.12 12A 150A 5 85 11.5 12
12 113.15 15A 150A 3.4 78 16.5 15
12 113.20 20A 150A 2.2 80 40 Q



1. AC Interrupting Rating (measured at designated voltage, 100% power factor); DC Interrupting Rating (measured at designated voltage, time constant of less than 50 microseconds, battery source)

2. DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃

3. Typical Pre-arcing I2 t are measured at 10In Current



Dimensions


12113 Series Electronic Circuit Board Fuses 1206 Fast Linear Voltage SMD Fuse 0
