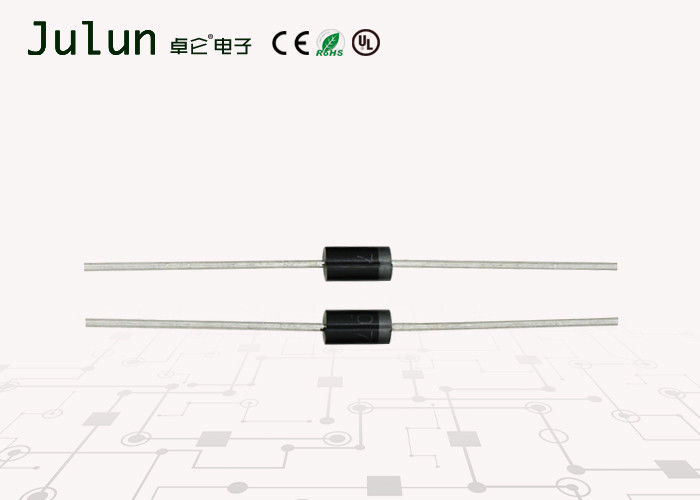

High Reliability Transient Voltage Suppressor Diode Fast Schottky Diode

China High Reliability Transient Voltage Suppressor Diode Fast Schottky Diode supplier

Large Image :  High Reliability Transient Voltage Suppressor Diode Fast Schottky Diode

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: FR207

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
VRRM (V): 1000 IF(AV) (A): 2
IFSM(A): 50 VF (V): 1.1
IR (μA): 5 TJ Max. (°C): 150

High Reliability Transient Voltage Suppressor Diode Fast Schottky Diode



Features



For su rface moun ted application

Low forward voltage drop
High current capability
High reliability
Plastic Case Material has UL Flammability



Mechanical Data



Case: Molded plastic SMAF
Terminals: Plated leads solderable per MIL-STD-750,Method 2026 guaranteed
Polarity: Color band dentes cathode end
Mounting Position: Any
Making: Type Number



Maximum Ratings and Electrical Characteristics



Rating at 25℃ ambient temperature unless otherwise specified
Single phase,half wave,60Hz,resistive or inductive load
For capacitive load derate current by 20%



Type Number SYMBOL G2AN G2BN G2DN G2GN G2JN G2KN G2MN Unit
Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V
Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V
Average Rectified Output Current
@TL =90℃
IF(AV) 2.0 A
Peak Forward Surge Current 8.3ms Single half
sine-wave superimposed on rated load (JEDEC
Method)
IFSM 50 A
I2t Rating for Fusing (t < 8.3ms) I 2 t 10.375 A2s
Forward Voltage @IF=2.0A VFM 1.0 V
Peak Reverse Current @TA =25 ℃ IR 5.0 uA
At Rated DC Blocking Voltage @TA =125℃ 500
Typical Junction Capacitance (Note 1) CJ 12 pF
Typical Thermal Resistance Junction to Rθ JA 50 ℃/W
Operating Temperature Range TJ -55 to+150
Storage Temperature Range TSTG -55 to +150



Note:  1. Measured at 1.0 MHz and Applied reverse Voltage of 4.0V D.C

           2.Thermal Resistance from Junction to Ambient at 0.375(9.5mm) lead length
