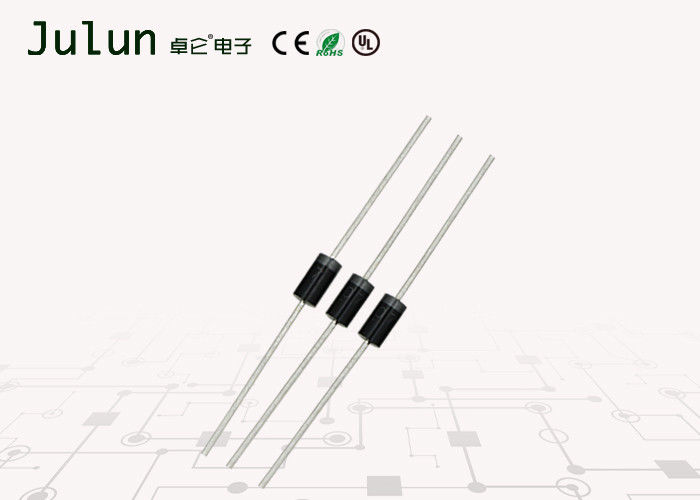

5.0 Amp Schottky Barrier Diode Super Fast Rectifiers Low Reverse Leakage

: Large Image : 5.0 Amp Schottky Barrier Diode Super Fast Rectifiers Low Reverse Leakage

Product Details:

Place of Origin:	CHINA
Brand Name:	Julun
Certification:	CE/UL/VDE/KC/ROHS
Model Number:	DO-201

Payment & Shipping Terms:

Minimum Order Quantity:	100 / Negotiable
Price:	Negotiable
Packaging Details:	Standard carton
Delivery Time:	7~10 Working days
Payment Terms:	L/C, D/P, T/T, MoneyGram
Supply Ability:	10000/Piece/Weekly

Contact Now

Detailed Product Description

Case:	JEDEC DO-27 Molded Plastic Body	Terminals:	Plated Axial Leads, Solderable Per MIL-STD-750, Method 2026
Polarity:	Color Band Denotes Cathode End	Mounting Position:	Any
Weight:	0.04 Ounce, 1.10 Grams

Transient Voltage Suppressor Diode 5.0Amp Super Fast Rectifiers

5.0Amp Super Fast Rectifiers

Features

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Super fast speed switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:

260°C/10 seconds,0.375"(9.5mm) lead length,

5 lbs. (2.3kg) tension

Mechanical Data

Case: JEDEC DO-27 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight : 0.04 ounce, 1.10 grams

Maximum Ratings And Electrical Characteristics

Ratings at 25 5.0 Amp Schottky Barrier Diode Super Fast Rectifiers Low Reverse Leakage C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load, for capacitive load current derate by 20%.

	SYMBOLS	SF51	SF52	SF53	SF54	SF55	SF56	SF58	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	150	200	300	400	600	VOLTS
Maximum RMS voltage	VRMS	35	70	105	140	210	280	420	VOLTS
Maximum DC blocking voltage	VDC	50	100	150	200	300	400	600	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=55 C	I(AV)	5							Amps

Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150							Amps


Maximum instantaneous forward voltage at 1.0A	VF	0.95				1.25		1.7	Volts
Maximum DC reverse current TA=25 C	IR	10 50							mA
at rated DC blocking voltage TA=100 C
Maximum reverse recovery time (NOTE 1)	trr	35							ns
Typical junction capacitance (NOTE 2)	CJ	100				50			pF
Typical thermal resistance (NOTE 3)	RqJA	30							C/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150							C

Dimensions

5.0 Amp Schottky Barrier Diode Super Fast Rectifiers Low Reverse Leakage
