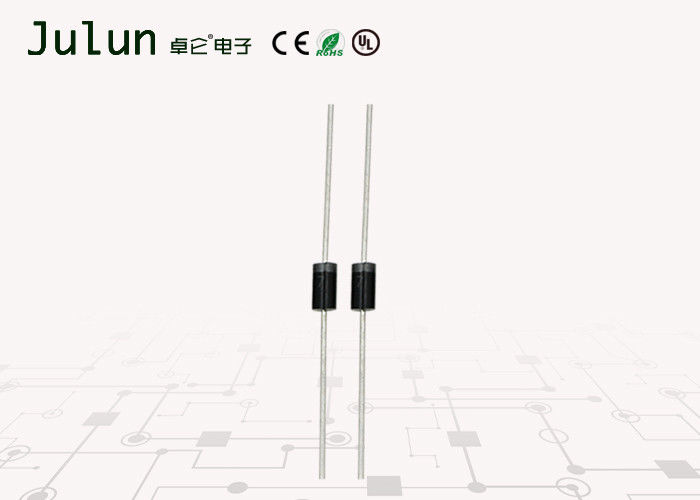

Lightweight Transient Voltage Suppressor Diode Silicon Bidirectional Diac TO-DO35

China Lightweight Transient Voltage Suppressor Diode Silicon Bidirectional Diac TO-DO35 supplier

Large Image :  Lightweight Transient Voltage Suppressor Diode Silicon Bidirectional Diac TO-DO35

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: DO-35

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Type: Rectifier Diode Package Type: Through Hole
Current: 1A Voltage: 50-1000V
Max. Forward Voltage:: 1.0V Max. Reverse Voltage: 50-1000V
Max. Forward Current: 1A Max. Reverse Current: 5uA

Silicon Bidirectional Diac TO-DO35 Transient Voltage Suppressor Diode
Features

The three-layer, two-terminal, axial-lead, hermetically sealed diacs are designed specifically for triggering thyristors. They demonstrate low breakover current at breakover voltage as they withstand peak pulse current. The breakover
symmetry is within three volts(DB3,DC34,DB4) or four volts(DB6). These diacs are intended for use in thyrisitors phase control , circuits for lamp dimming, universal motor speed control and heat control.
JF's DB3/DC34/DB4/DB6 are bi-directional triggered diode designed to operate in conjunction with Triacs and SCR's
High temperature soldering guaranteed:260 /10 seconds at terminals


Mechanical Data

Case : DO-35 glass case
Weight : Approx. 0.13 gram


ABSOLUTE RATINGS(LIMITING VALUES)



Symbols

Parameters

Value

Units



DB3

DC34

DB4

DB6

PC

Power Dissipation on Printed
Circuit(L=10mm)
TA=50 C150

mW

ITRM

Repetitive Peak on-state
Current
tp=10ms
f=100Hz
2.02.02.01.6

A

TSTG/TJ

Storage and Operating Junction Temperature

-40 to+125/-40 to +110

°C



ELECTRICAL CHARACTERISTICS



Symbols

Parameters

Test Condition

Value

Units



DB3

DC34

DB4

DB6

VBO



Breakover Voltage (Note 2 )



C=22nF(Note 2)
See diagram 1

Min

28

30

3556V

Typ

32

34

4060
Max

36

38

4570

+VBO -

-VBO

Breakover Voltage Symmetry

C=22nF(Note 2)
See diagram 1

Max

+3+4V

+ V

Dynamic Breakover Voltage (Note1

I=(IBO to IF=10mA)
See Diagram 1

Min

510V

VO

Output Voltage (Note 1 )

See Diagram 2

Min

5V

IBO

Breakover Current (Note1)

C=22nF(Note 2)

Max

100

mA

tr

Rise Time (Note1)

See Diagram 3

Typ

1.5

ms

IB

Leakage Current (Note1)

VB=0.5 VBO max
see diagram 1

Max

10

mA

Notes: 1.Electrical characteristics applicable in both forward and reverse directions. 2.Connected in parallel with the devices.
