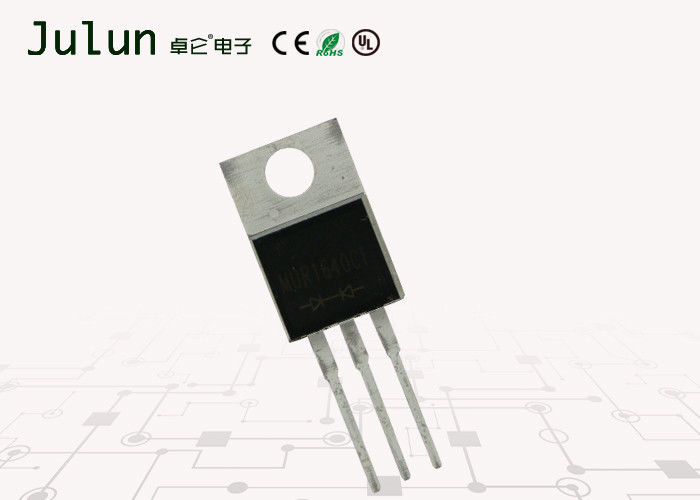

TO-220AB Transient Voltage Suppressor Diode ER1000-ER1006ct Fast recovery diode
MUR1610CT THRU MUR1660CT
16.0 A Switchmode Power Rectifiers
Low forward voltage drop
High current capability
Low Power Loss,High Efficiency
Ultrafast 35 and 60 Nanosecond Recovery times
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 1.98 grams
Maximum Ratings and Electrical Characteristics
Rating at 25 ℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
|Maximum Repetitive Peak Reverse Voltage||VRRM||100||200||400||600||V|
|Maximum RMS Voltage||VRMS||70||140||280||420||V|
|Maximum DC Blocking Voltage||VDC||100||200||400||600||V|
|Maximum Average Forward Rectified Current||IF||16||A|
|Peak Forward Surge Current, 8.3 ms Single Half Sine-wave||IFSM||100||A|
|Superimposed on Rated Load (JEDEC method)|
|Maximum Instantaneous Forward Voltage @8A||VF||1||1.3||1.7||V|
|Maximum Reverse Current @ Rated VR TA=25 ℃TA=125℃||IR||10||uA|
|Typical Junction Capacitance (Note 1)||Cj||150||pF|
|Typical Thermal Resistance(Note 2)||RθjA||30||℃/w|
|Operating and Storage Temperature Range||TJ||-65～+150||℃|
|Maximum reverse recovery time (Note 3)||Trr||50||nS|
NOTE1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
NOTE2. Leads maintained at ambient temperature at a distance of 9.5mm from the case
NOTE3. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.
